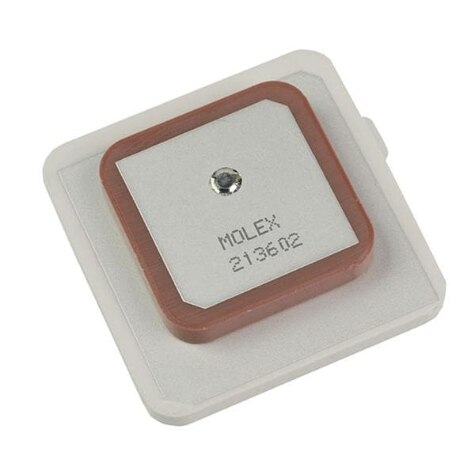

GPS L1/L2 and Glonass 36.00mm Stacked Patch Single Feed Antenna
GPS L1/L2 and Glonass 36.00mm Stacked Patch Single Feed Antenna
| Part | Height (Max) | Mounting Type | Termination | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Minimum | Frequency Range (Band 2) Maximum | Frequency Range (Band 1) Maximum | Frequency (Center) | Frequency (Band) | Return Loss | Antenna Type | Number of Bands | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Applications | Gain | RF Family/Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.276 in | Adhesive | Solder | 1.2265 GHz | 1.574 GHz | 1.576 GHz | 1.2286 GHz | 1.2275 GHz | 1.575 GHz | -15 dB | Ceramic Patch | 2 | 1 GHz | UHF | 2 GHz | GLONASS GNSS GPS | 2.1 dBi 5.3 dBi | Navigation |
