MPX2200 Series

Catalog

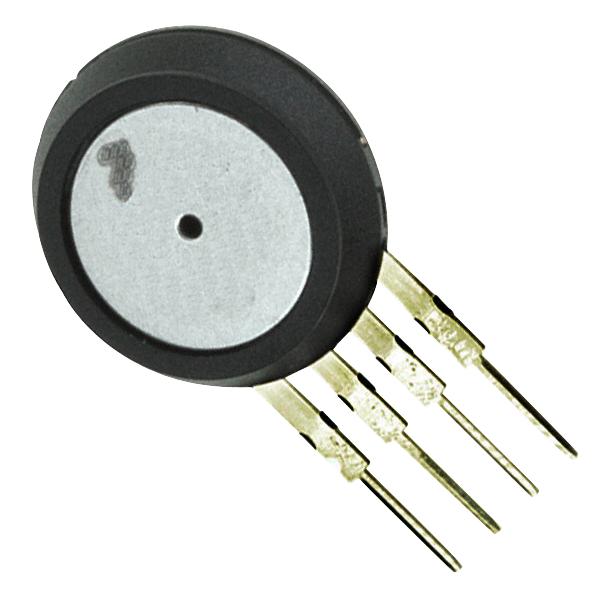

PRESSURE SENSOR, DIFFERENTIAL, 0.2 MV/KPA, 0 KPA, 200 KPA, 10 V, 16 V ROHS COMPLIANT: YES

Part	Maximum Pressure	Port Diameter	Port Feature	Port Gender	Port Style	Accuracy	Pressure Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Type	Termination Style	Mounting Type	Applications	Operating Pressure	Operating Temperature (Max)	Operating Temperature (Min)	Features	Package / Case	Output Voltage (Min)	Output Voltage (Max)
NXP USA Inc. MPX2200DP	116.03 PSI	0.19 "	Dual Tube	Male	Barbed	0.25 %	Differential	16 V	10 VDC	Wheatstone Bridge	PC Pin	Through Hole	Board Mount	29.01 PSI	125 °C	-40 °C	Temperature Compensated	4-SIP Module	0 mV	40 mV
NXP USA Inc. MPX2200D	116.03 PSI				No Port	0.25 %	Differential	16 V	10 VDC	Wheatstone Bridge	PC Pin	Through Hole	Board Mount	29.01 PSI	125 °C	-40 °C	Temperature Compensated	4-SIP Module	0 mV	40 mV
