2323750 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS ASSY,HDR,RIGHT ANGLE GWT,DUAL ROW, EP2.5

Part	Contact Finish - Post	Insulation Material	Contact Type	Shrouding	Contact Finish - Mating	Number of Rows	Contact Shape	Contact Material	Voltage Rating	Material Flammability Rating	Number of Positions	Fastening Type	Termination	Contact Finish Thickness - Mating	Current Rating	Number of Positions Loaded	Connector Type	Insulation Color	Style	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Post	Insulation Height	Pitch - Mating	Mounting Type	Row Spacing - Mating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-2323750-2	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Copper Alloy	250 V	UL94 V-0	12	Friction Lock	Solder	78.7 Ąin	4.2 A	All	Header	Natural	Board Cable/Wire	Board Lock Glow Wire Compliant	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin

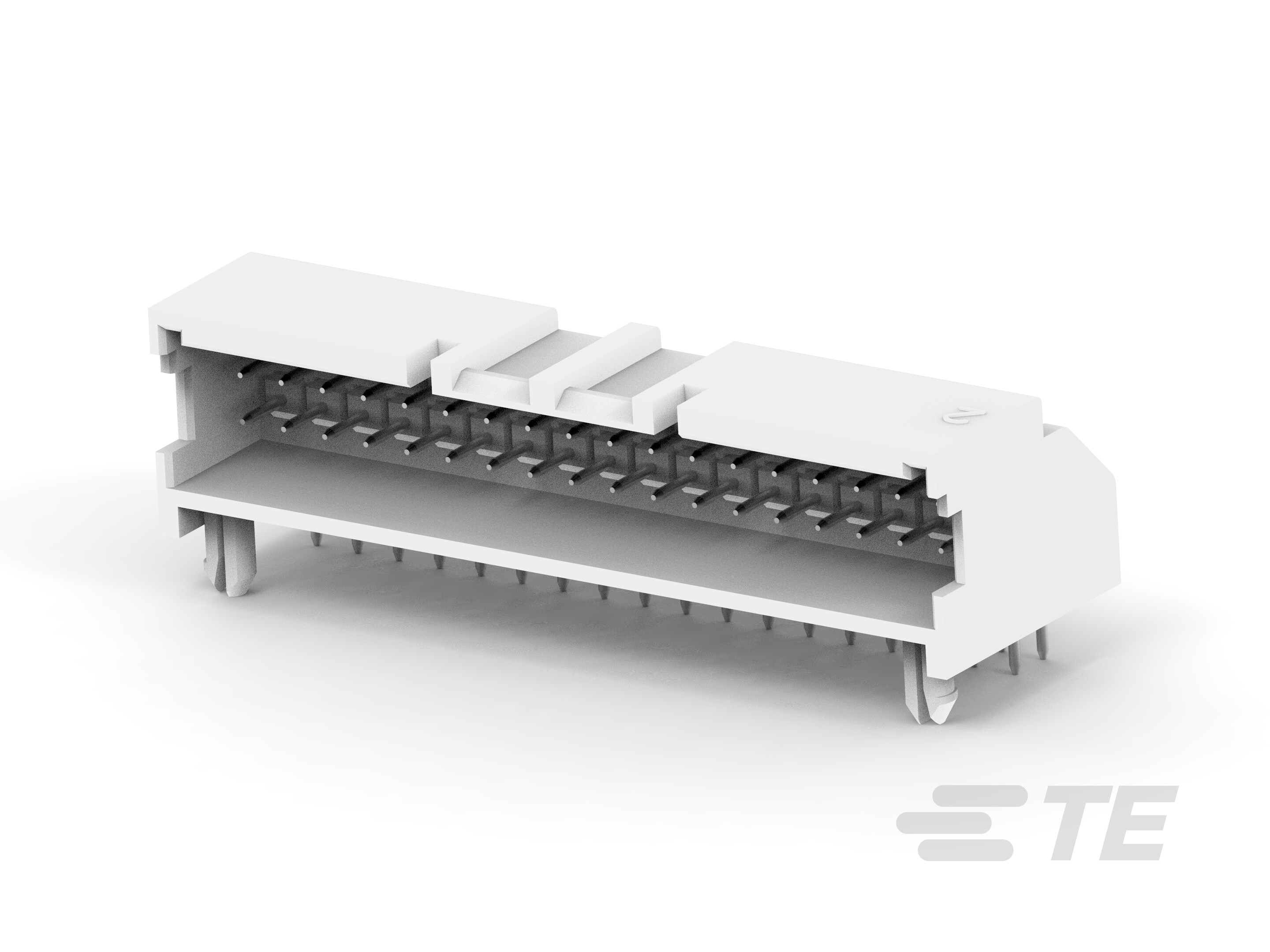

TE Connectivity AMP Connectors 3-2323750-6	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Brass	250 V	UL94 V-0	36	Friction Lock	Solder	78.7 Ąin	4.2 A	All	Header	Natural	Board Cable/Wire	Board Lock Glow Wire Compliant	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin
TE Connectivity AMP Connectors 1-2323750-6	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Copper Alloy	250 V	UL94 V-0	16	Friction Lock	Solder	78.7 Ąin	4.2 A	All	Header	Natural	Board Cable/Wire	Board Lock Glow Wire Compliant	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin

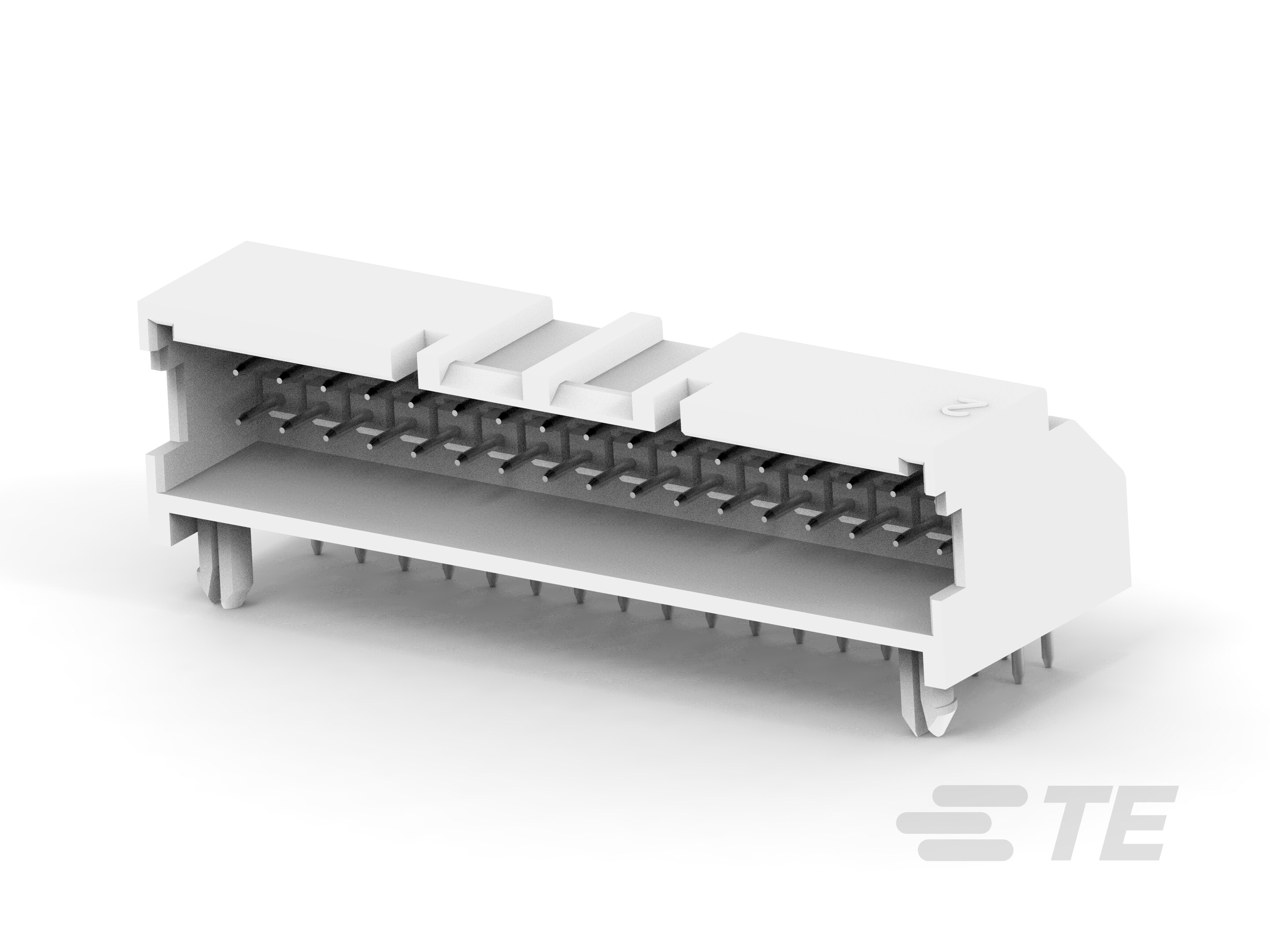

TE Connectivity AMP Connectors 3-2323750-4	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Copper Alloy	250 V	UL94 V-0	34	Locking Ramp	Solder	78.7 Ąin	4.2 A	All	Header	Natural	Board Cable/Wire	Board Lock	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin
TE Connectivity AMP Connectors 4-2323750-0	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Copper Alloy	250 V	UL94 V-0	40	Friction Lock	Solder	78.7 Ąin		All	Header	Natural	Board Cable/Wire	Board Lock Glow Wire Compliant	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin

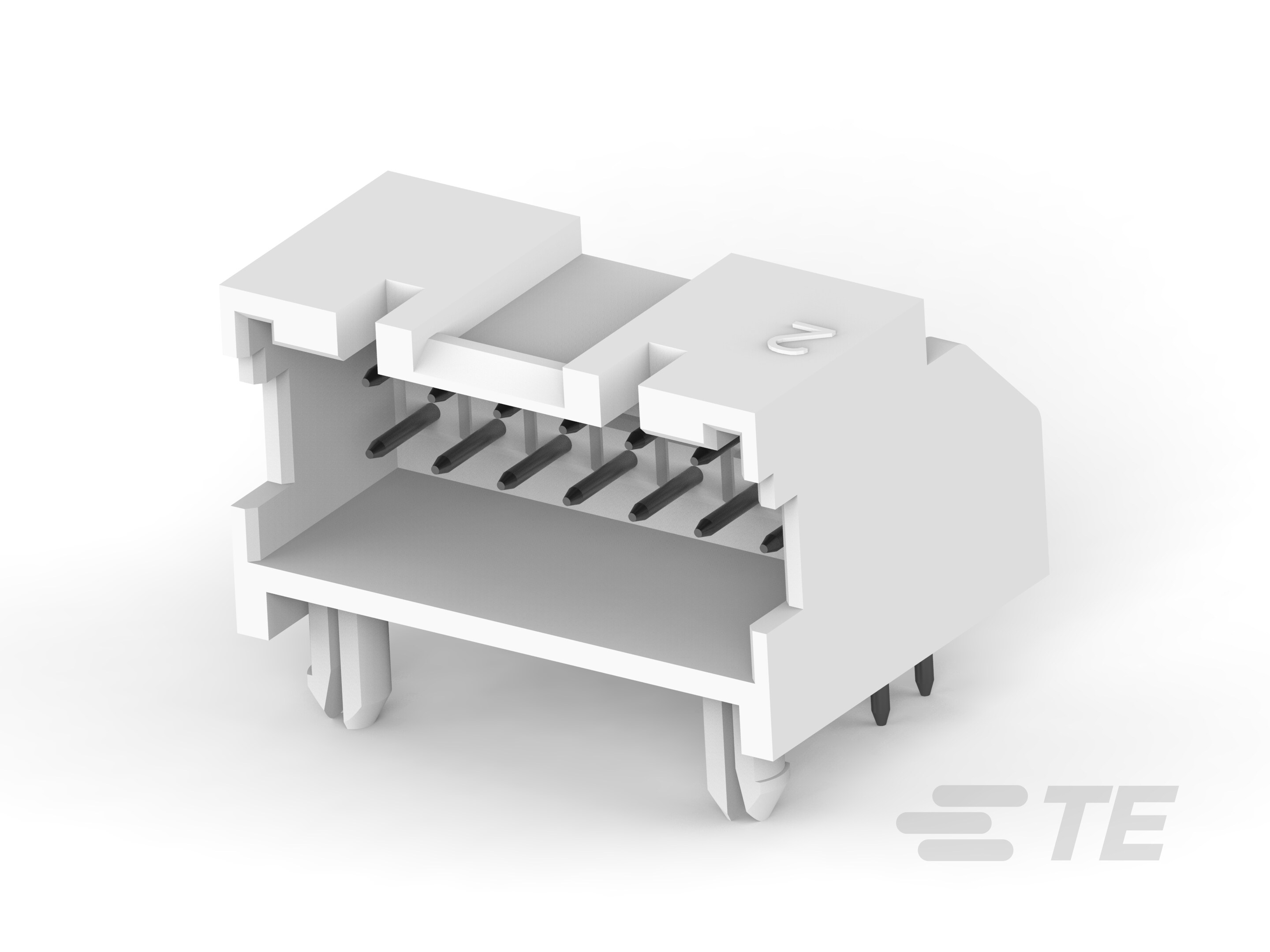

TE Connectivity AMP Connectors 1-2323750-4	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Copper Alloy	250 V	UL94 V-0	14	Friction Lock	Solder	78.7 Ąin	4.2 A	All	Header	Natural	Board Cable/Wire	Board Lock Glow Wire Compliant	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin

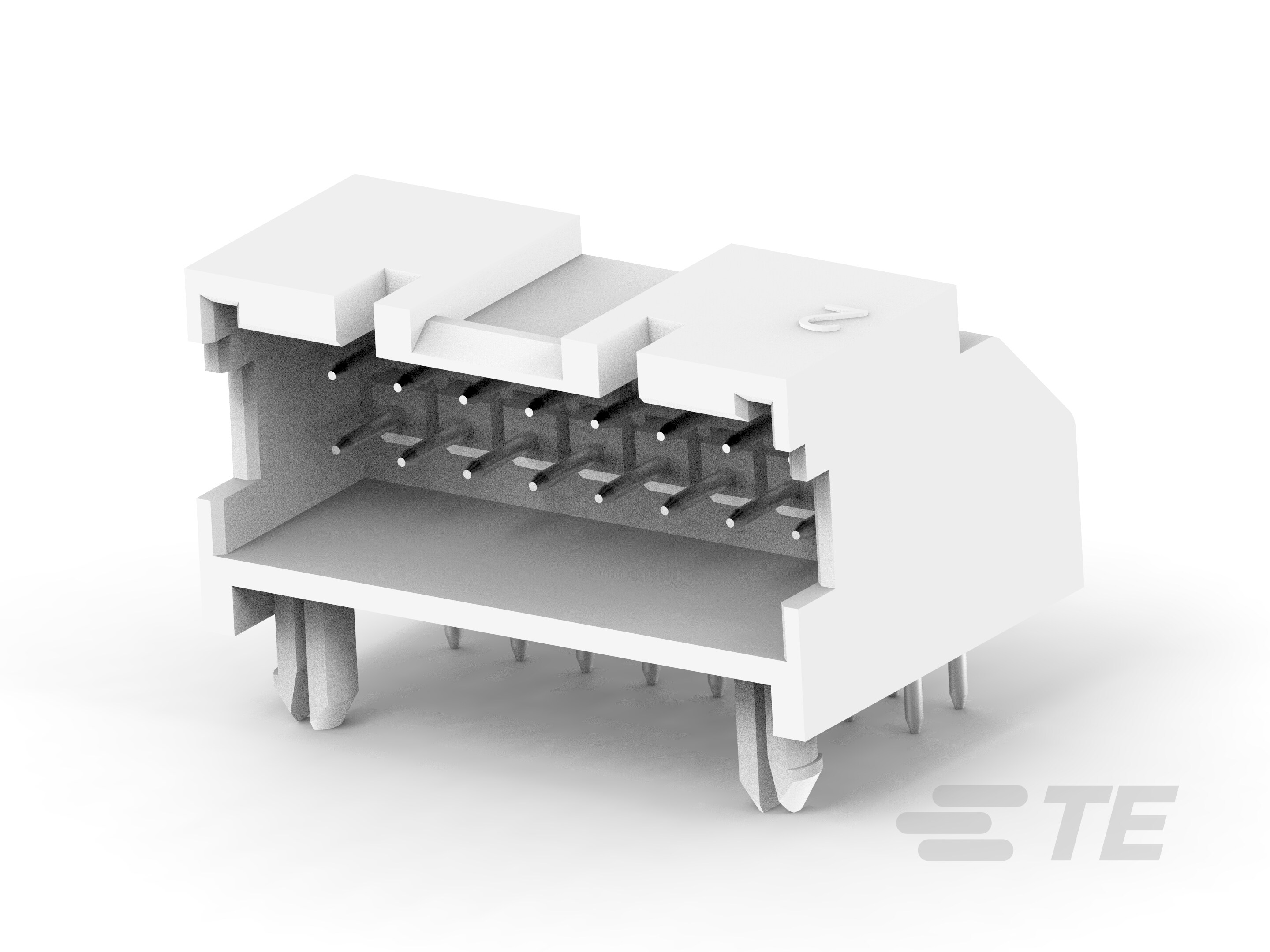

TE Connectivity AMP Connectors 1-2323750-0	Tin	Nylon 6/6 Polyamide (PA66)	Male Pin	Shrouded - 4 Wall	Tin	2	Circular	Copper Alloy	250 V	UL94 V-0	10	Friction Lock	Solder	78.7 Ąin	4.2 A	All	Header	Natural	Board Cable/Wire	Board Lock Glow Wire Compliant	-55 °C	105 °C	0.134 in	0.479 in	0.098 in	Right Angle Through Hole	0.098 in	78.7 µin
