748394 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

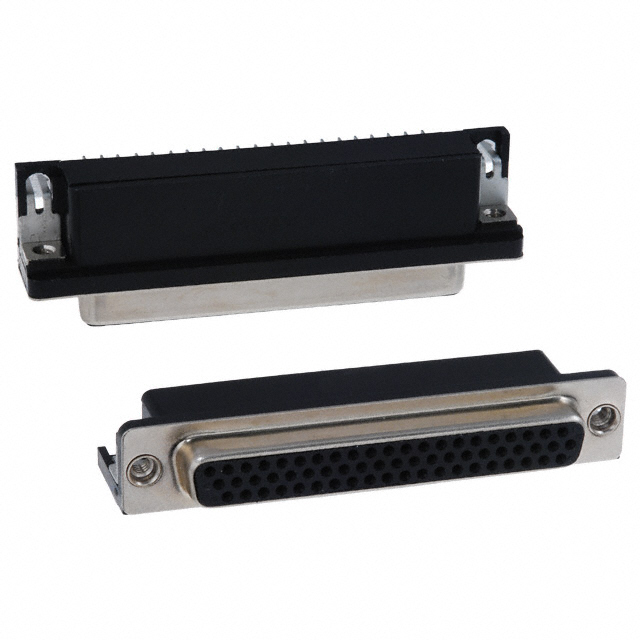

CONN D-SUB HD RCPT 62P R/A SLDR
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Flange Feature | Voltage Rating | Shell Size, Connector Layout | Connector Style | Connector Type | Contact Type | Shell Material, Finish | Current Rating (Amps) | Color | Termination | Number of Positions | Contact Material | Number of Rows | Material Flammability Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole Right Angle | 0.76 Ám | 30 Áin | Gold | 105 ░C | -55 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Housing/Shell (4-40) | 125 VDC | 4 | D-Sub High Density | Receptacle Female Sockets | Signal | Nickel Plated Steel | 2 A | Black | Solder | 62 | Phosphor Bronze | 3 | UL94 V-0 | |
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | 0.76 Ám | 30 Áin | Gold | 105 ░C | -55 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Female Screwlock (4-40) Mating Side | 125 VDC | 4 | D-Sub High Density | Receptacle Female Sockets | Signal | Nickel Plated Steel | 2 A | Black | Solder | 62 | Phosphor Bronze | 3 | UL94 V-0 | |
TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Gold | 105 ░C | -55 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Female Screwlock (4-40) Mating Side | 125 VDC | 4 | D-Sub High Density | Receptacle Female Sockets | Signal | Nickel Plated Steel | 2 A | Black | Solder | 62 | Phosphor Bronze | 3 | UL94 V-0 | Flash |
