747193 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

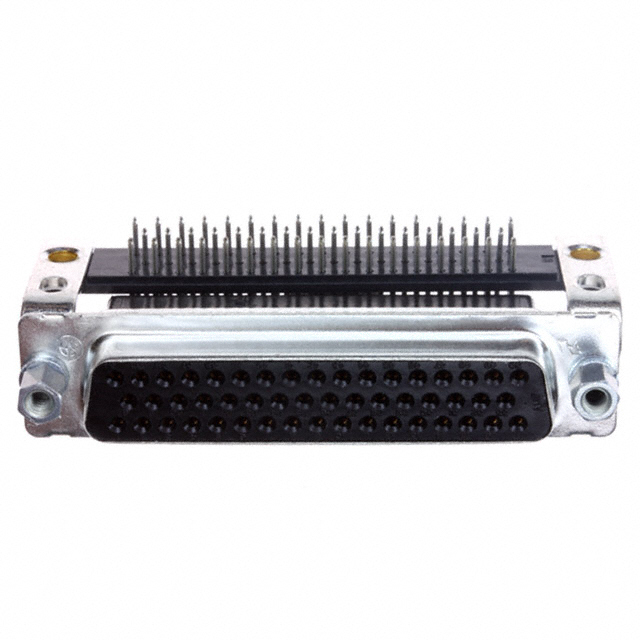

CONN D-SUB RCPT 50POS R/A SLDR
| Part | Connector Style | Color | Number of Rows | Termination | Backset Spacing | Backset Spacing | Contact Type | Material Flammability Rating | Shell Size, Connector Layout | Contact Finish Thickness | Voltage Rating | Number of Positions | Current Rating (Amps) | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Features | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | D-Sub | Black | 3 | Solder | 13.84 mm | 0.545 in | Signal | UL94 V-0 | 5 | Flash | 125 VDC | 50 | 6 A | Phosphor Bronze | 105 ░C | -55 °C | Receptacle Female Sockets | Through Hole Right Angle | Mounting Brackets | Gold | Female Screwlock (4-40) Mating Side |
