100068 Series

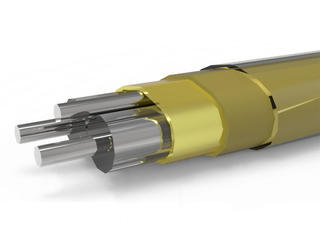

Temp-Flex TwinMax High-Temperature, Low-Loss Twinax Cable, FEP Insulation, 100 Ohms, 34 AWG, 34 AWG Drain, Longitudinal Foil Design (Higher Bandwidth)

Manufacturer: Molex

Catalog

Temp-Flex TwinMax High-Temperature, Low-Loss Twinax Cable, FEP Insulation, 100 Ohms, 34 AWG, 34 AWG Drain, Longitudinal Foil Design (Higher Bandwidth)

Part	Length	Wire Gauge	Length	Features	Cable Type	Jacket (Insulation) Diameter	Shield Type	Impedance	Jacket (Insulation) Material	Conductor Strand	Shield Material	Shield Coverage	Conductor Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Spool Size
Molex 1000680066
Molex 1000680079	12 in 25 ft 50 ft 100 ft	34 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.044 in	Foil	100 Ohm	Polyester	Solid (2)
Molex 1000680071	12 in 25 ft 50 ft 100 ft	32 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.055 in	Foil	100 Ohm	Polyester	Solid (2)	Aluminum	100 %	Copper Silver Coated	-20 °C	105 °C	Fluoropolymer (FP)
Molex 1000680044	12 in 25 ft 50 ft 100 ft	34 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.035 in	Foil	85 Ohms	Polyester	Solid (2)
Molex 1000680115	12 in 25 ft 50 ft 100 ft	30 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.058 in	Foil	90 Ohms	Polyester	Solid (2)	Aluminum	100 %	Copper Silver Coated	-20 °C	105 °C	Fluoropolymer (FP)	200 ft
Molex 1000680080	12 in 25 ft 50 ft 100 ft	32 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.046 in	Foil	85 Ohms 90 Ohms	Polyester	Solid (2)	Aluminum	100 %	Copper Silver Coated	-20 °C	105 °C	Fluoropolymer (FP)	200 ft
Molex 1000680108	12 in 25 ft 50 ft 100 ft	28 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.09 in	Foil	100 Ohm	Polyester	Solid (2)
Molex 1000680107	12 in 25 ft 50 ft 100 ft	30 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.074 in	Foil	100 Ohm	Polyester	Solid (2)	Aluminum	100 %	Copper Silver Coated	-20 °C	105 °C	Fluoropolymer (FP)
Molex 1000680085	12 in 25 ft 50 ft 100 ft	28 AWG	Enter Number of Feet in Order Quantity	Drain Wire	Twinaxial	0.075 in	Foil	90 Ohms	Polyester	Solid (2)	Aluminum	100 %	Copper Silver Coated	-20 °C	105 °C	Fluoropolymer (FP)	200 ft
