641208 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 6POS 3.96MM

Part	Shrouding	Fastening Type	Current Rating	Number of Positions	Contact Type	Style	Voltage Rating	Mounting Type	Contact Length - Post	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Termination	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Connector Type	Contact Finish - Post	Pitch - Mating	Insulation Material	Contact Length - Mating	Insulation Height	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Material	Overall Contact Length	Applications

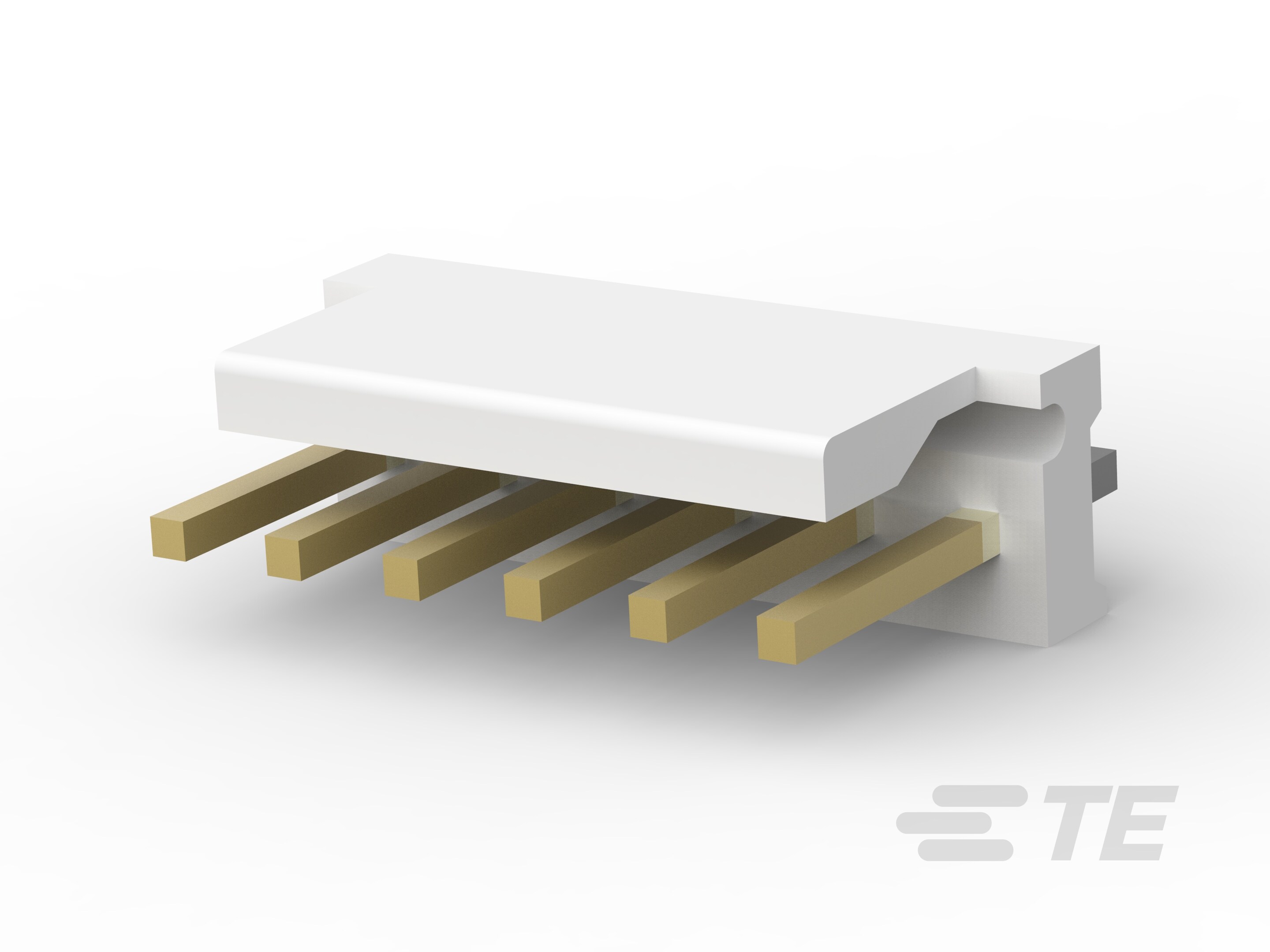

TE Connectivity AMP Connectors 3-641208-6	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	6	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 4-641208-2	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	12	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 641208-9	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	9	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin-Lead	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 5-641208-0	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	20	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 641208-3	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	3	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin-Lead	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 641208-7	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	7	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin-Lead	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 4-641208-0	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	10	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 641208-8	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	8	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin-Lead	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 5-641208-4	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	24 pos	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
TE Connectivity AMP Connectors 641208-2	Shrouded - 1 Wall	Friction Lock	Varies by Wire Gauge	2	Male Pin	Board Cable/Wire	600 V	Through Hole	0.125 in	-55 °C	105 °C	Gold	Solder	Natural	All	UL94 V-0	Header	Tin-Lead	0.156 in	Glass Filled Thermoplastic	0.4 in	0.425 in	Square	1	30 µin	Copper Alloy	0.65 in	General Purpose Industrial
