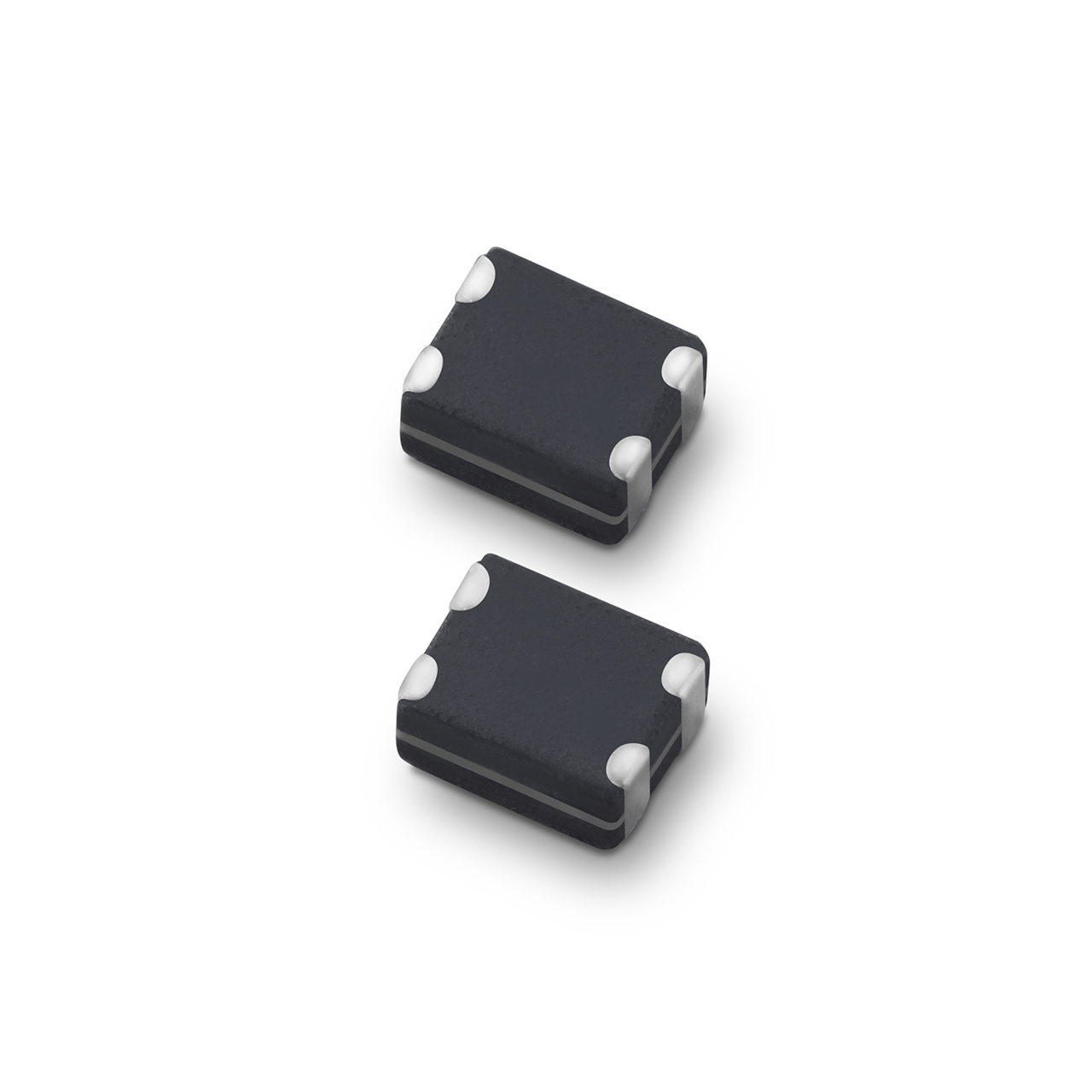

LCFA121002B900TG Series

CMF 1210 2Lines 90ohm AECQ

Catalog

CMF 1210 2Lines 90ohm AECQ

Part	DC Resistance (DCR) (Max)	Number of Lines	Mounting Type	Size / Dimension Width	Size / Dimension Length	Impedance	Ratings	Package Leads	Package Name	Current Rating (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Filter Type	Height (Max)
LITTELFUSE LCFA121002B900TG	4 Ohm	2	Surface Mount	0.039 in	0.05 in	90 Ohms	AEC-Q200	4 Leads	0504 (1210 Metric)	150 mA	125 °C	-40 °C	Signal Line	0.026 in

Catalog

CMF 1210 2Lines 90ohm AECQ

Description

Common Mode Noise Filters attenuate the common mode noise that is problematic in differential transmission (examples: USB, HDMI and MIPI), balanced transmission, power supply lines, and audio lines. Common Mode Noise Filters (CMF) are ideal for suppressing unwanted common mode noise with frequencies ranging from hundred megahertz to gigahertz with no adverse effect on the signals (differential cut-off frequency).
