5414363 Series

Catalog

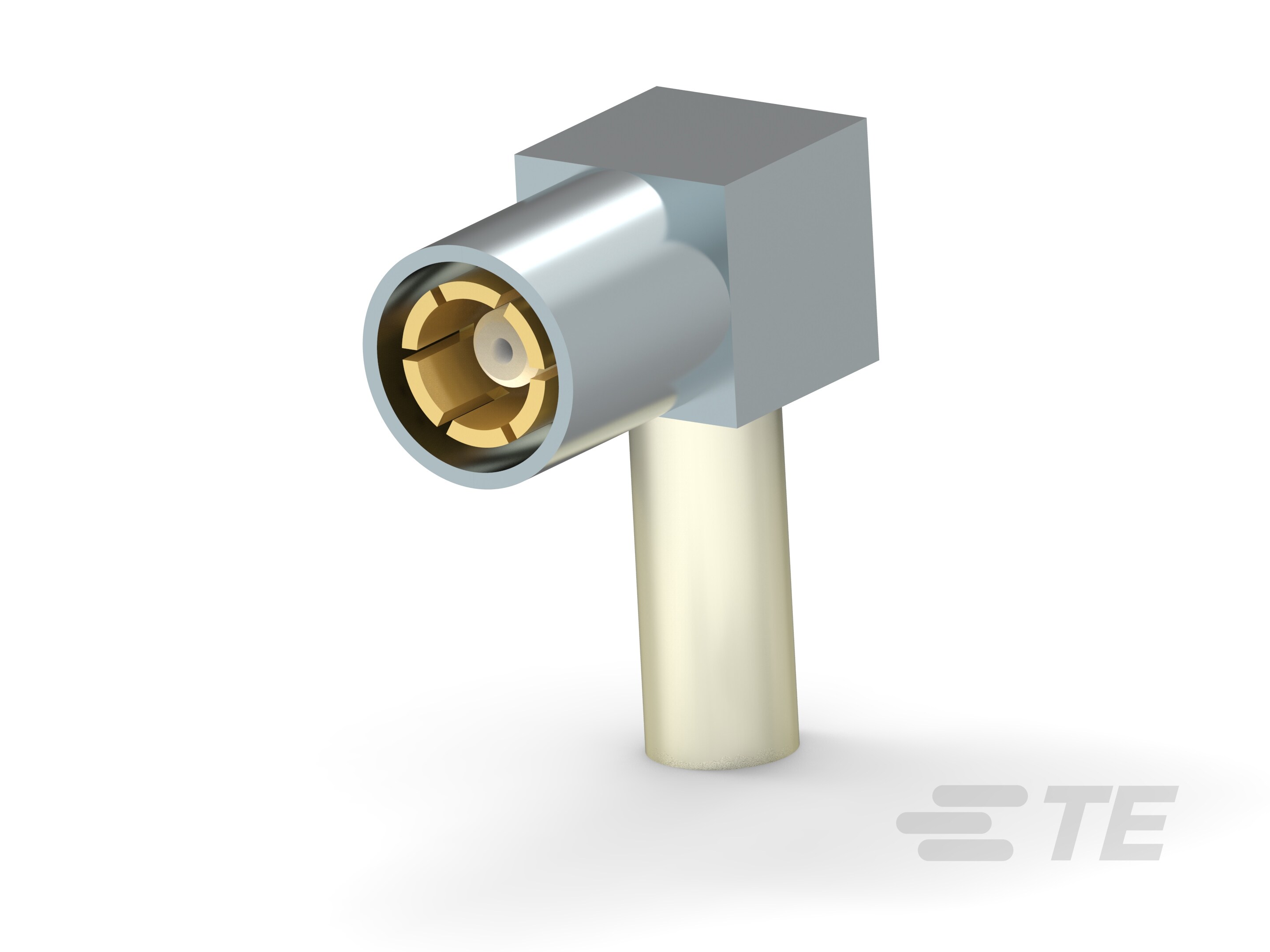

RF / COAXIAL CONNECTOR, SMB COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG174, RG188, RG316, BRASS

Part	Cable Group	Frequency - Max	Connector Type	Contact Termination	Mounting Type	Housing Color	Fastening Type	Impedance	Connector Style	Number of Ports	Shield Termination	Insertion Loss	Includes Total Count	Includes	Center Contact Plating	Body Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Body Finish	Dielectric Material
TE Connectivity AMP Connectors 5414363-5	188 316 RG-174	3 GHz	Female Socket Plug	Solder	Free Hanging (In-Line) Right Angle	Silver	Snap-On	50 Ohm	SMB	1	Crimp	0.6 dB	3 pcs	Connector End Cap Ferrule	Gold	Zinc	500 cycles	-65 °C	165 °C	335 V	Nickel	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 5414363-4	188 316 (Double Braid) RG-174	3 GHz	Female Socket Plug	Solder	Free Hanging (In-Line) Right Angle	Silver	Snap-On	50 Ohm	SMB	1	Crimp	0.6 dB	3 pcs	Connector End Cap Ferrule	Gold	Zinc	500 cycles	-65 °C	165 °C	335 V	Nickel	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 5414363-8	196 RG-178	3 GHz	Female Socket Plug	Solder	Free Hanging (In-Line) Right Angle	Silver	Snap-On	50 Ohm	SMB	1	Crimp	0.6 dB	3 pcs	Connector End Cap Ferrule	Gold	Zinc	500 cycles	-65 °C	165 °C	335 V	Nickel	Polytetrafluoroethylene (PTFE)
