Power Diode Discretes-FRED ISOPLUS220
Description
AI
The FRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Power Diode Discretes-FRED ISOPLUS220
Power Diode Discretes-FRED ISOPLUS220
| Part | Package / Case | Current - Average Rectified (Io) | Mounting Type | Voltage - DC Reverse (Vr) (Max) | Package Name | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Capacitance | Technology | Current - Reverse Leakage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

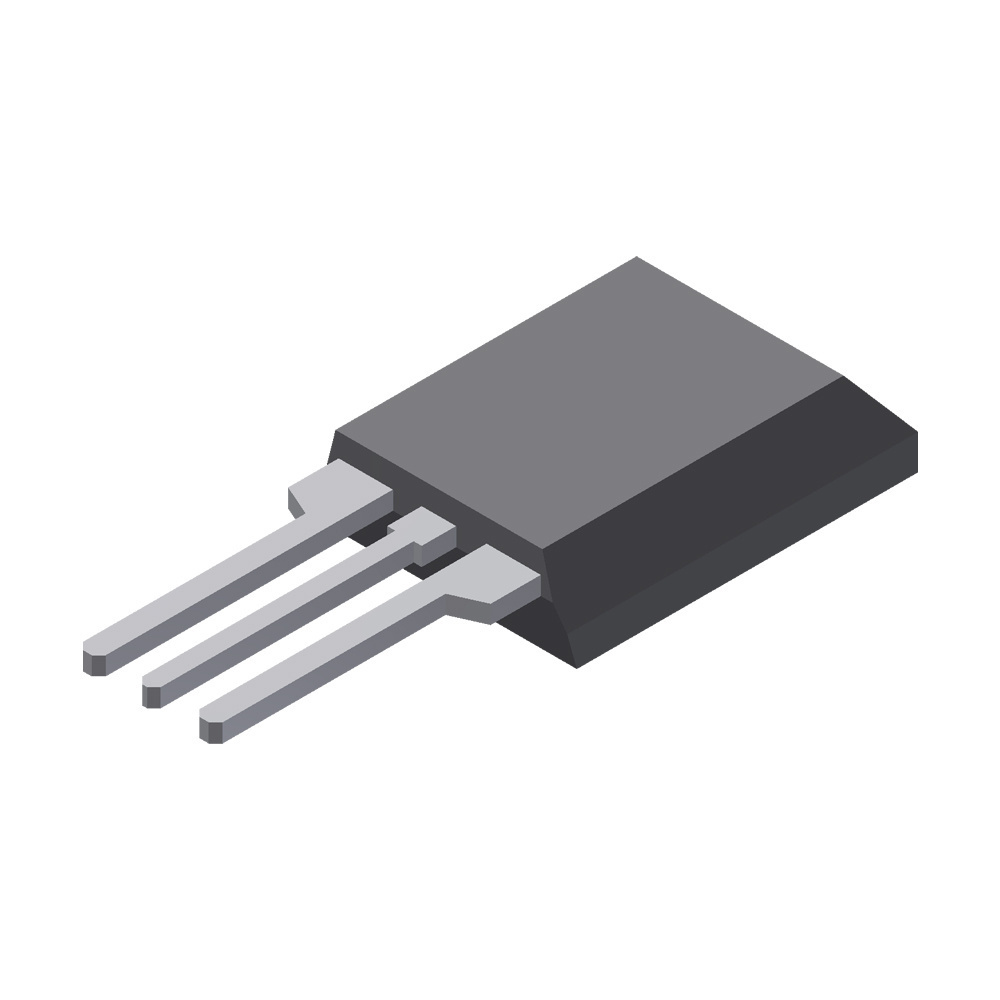

 LITTELFUSE | ISOPLUS220™ | 30 A | Through Hole | 400 V | ISOPLUS220™ | 45 ns | 1.35 V | 500 ns | 200 mA | 175 °C | -55 °C | 46 pF | Standard | 1 µA |
