644898 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER R/A 10POS 2.54MM
| Part | Contact Length - Post | Contact Type | Material Flammability Rating | Mounting Type | Fastening Type | Contact Finish Thickness - Mating | Number of Rows | Insulation Color | Pitch - Mating | Insulation Material | Contact Shape | Contact Material | Connector Type | Number of Positions | Insulation Height | Style | Contact Finish - Mating | Number of Positions Loaded | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Post | Termination | Contact Length - Mating | Current Rating | Current Rating | Applications | Voltage Rating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | 0.13 in | Male Pin | UL94 V-0 | Right Angle Through Hole | Friction Lock | 30 µin | 1 | Black | 0.1 in | Polyester | Square | Copper Alloy | Header | 10 | 0.313 in | Board Cable/Wire | Gold | All | -55 °C | 105 °C | Tin | Solder | 0.28 in | 0 A | Varies by Wire Gauge | General Purpose Lighting | 250 V | Shrouded - 4 Wall |
 TE Connectivity AMP Connectors | 0.13 in | Male Pin | UL94 V-0 | Right Angle Through Hole | Friction Lock | 30 µin | 1 | Black | 0.1 in | Polyester | Square | Copper Alloy | Header | 4 | 0.313 in | Board Cable/Wire | Gold | All | -55 °C | 105 °C | Tin | Solder | 0.28 in | 0 A | Varies by Wire Gauge | General Purpose Lighting | 250 V | Shrouded - 4 Wall |

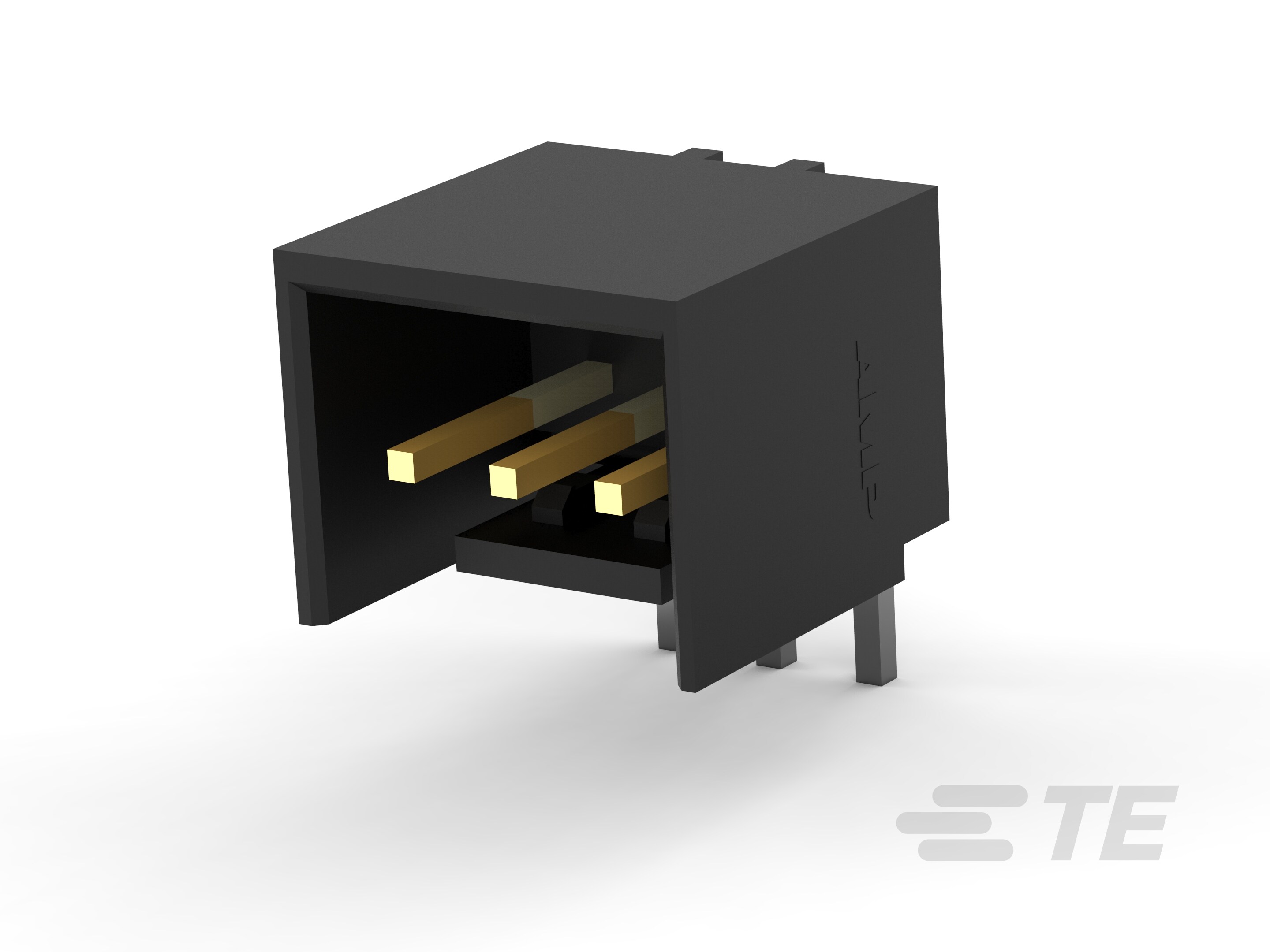

 TE Connectivity AMP Connectors | 0.13 in | Male Pin | UL94 V-0 | Right Angle Through Hole | Friction Lock | 30 µin | 1 | Black | 0.1 in | Polyester | Square | Copper Alloy | Header | 3 | 0.313 in | Board Cable/Wire | Gold | All | -55 °C | 105 °C | Tin | Solder | 0.28 in | 0 A | Varies by Wire Gauge | General Purpose Lighting | 250 V | Shrouded - 4 Wall |
 TE Connectivity AMP Connectors | 0.13 in | Male Pin | UL94 V-0 | Right Angle Through Hole | Friction Lock | 30 µin | 1 | Black | 0.1 in | Polyester | Square | Copper Alloy | Header | 8 | 0.313 in | Board Cable/Wire | Gold | All | -55 °C | 105 °C | Tin | Solder | 0.28 in | 0 A | Varies by Wire Gauge | General Purpose Lighting | 250 V | Shrouded - 4 Wall |
 TE Connectivity AMP Connectors | 0.13 in | Male Pin | UL94 V-0 | Right Angle Through Hole | Friction Lock | 30 µin | 1 | Black | 0.1 in | Polyester | Square | Copper Alloy | Header | 2 | 0.313 in | Board Cable/Wire | Gold | All | -55 °C | 105 °C | Tin | Solder | 0.28 in | 0 A | Varies by Wire Gauge | General Purpose Lighting | 250 V | Shrouded - 4 Wall |
