2271140 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

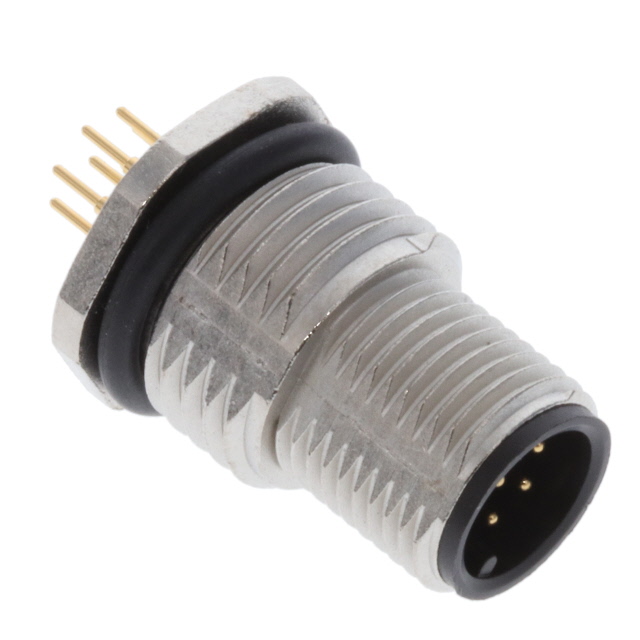

M12 MALE PNL.A CODE.5P.PCB TYPE.
| Part | Connector Type | Voltage Rating | Voltage Rating (Type) | Mounting Feature | Contact Finish Thickness - Mating | Termination | Shell Material | Primary Material | Orientation | Current Rating | Mounting Type | Shell Size - Insert | Contact Finish - Mating | Shielding | Ingress Protection IP Rating | Ingress Protection Description | Color | Operating Temperature (Min) | Operating Temperature (Max) | Insert Material | Number of Positions | Fastening Type | Contact Material | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Male Pins Receptacle | 60 V | DC | Bulkhead Rear Side Nut | 19.7 µin | Solder | Zinc Die Cast | Metal | A | 2 A | Panel Mount Through Hole | M12-8 | Gold | Unshielded | IP68 | Dust Tight Waterproof | Silver | -40 °C | 85 °C | Nylon PA Polyamide | 8 | Threaded | Brass | Nickel |
 TE Connectivity AMP Connectors | Male Pins Receptacle | 30 V | AC DC | Bulkhead Front Side Nut | 19.7 µin | Solder | Zinc Die Cast | Metal | A | 2 A | Panel Mount Through Hole | M12-12 | Gold | Unshielded | IP68 | Dust Tight Waterproof | Silver | -40 °C | 85 °C | Nylon PA Polyamide | 12 | Threaded | Brass | Nickel |
TE Connectivity AMP Connectors |
