767114 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

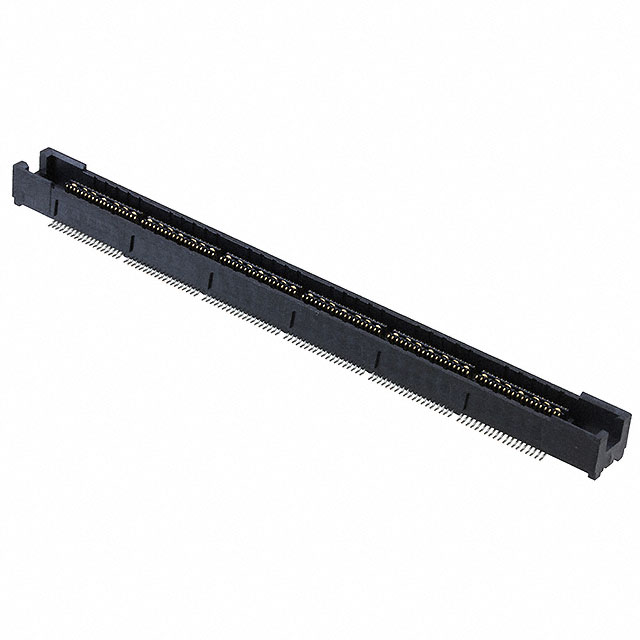

BOARD TO BOARD & MEZZANINE CONNECTORS MICT REC 228 ASY .025 TAPE CAP
| Part | Connector Type | Mounting Type | Mated Stacking Height Options | Number of Rows | Number of Positions | Pitch | Contact Finish | Features | Height Above Board | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | Surface Mount | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 2 | 228 | 0.025 in | Gold | Board Guide Ground Bus (Plane) | 0.236 in | 30 µin |
 TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | Surface Mount | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 2 | 38 | 0.025 in | Gold | Board Guide Ground Bus (Plane) | 0.236 in | 30 µin |
TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | Surface Mount | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 2 | 76 | 0.025 in | Gold | Board Guide Ground Bus (Plane) | 0.236 in | 30 µin |
TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | Surface Mount | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 2 | 152 | 0.025 in | Gold | Board Guide Ground Bus (Plane) | 0.236 in | 30 µin |
TE Connectivity AMP Connectors | Center Strip Contacts Receptacle | Surface Mount | 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm 6.6mm 9mm | 2 | 114 | 0.025 in | Gold | Board Guide Ground Bus (Plane) | 0.236 in | 30 µin |
