185226 Series

Catalog

AUTOMOTIVE CONNECTORS ASY 26W HDR MQS FOR PCB

Part	Insulation Material	Contact Length - Post	Number of Rows	Mounting Type	Number of Positions Loaded	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Row Spacing - Mating	Insulation Height	Contact Type	Contact Finish - Post	Fastening Type	Contact Length - Mating	Style	Connector Type	Contact Shape	Shrouding	Number of Positions	Pitch - Mating	Termination	Insulation Color	Applications

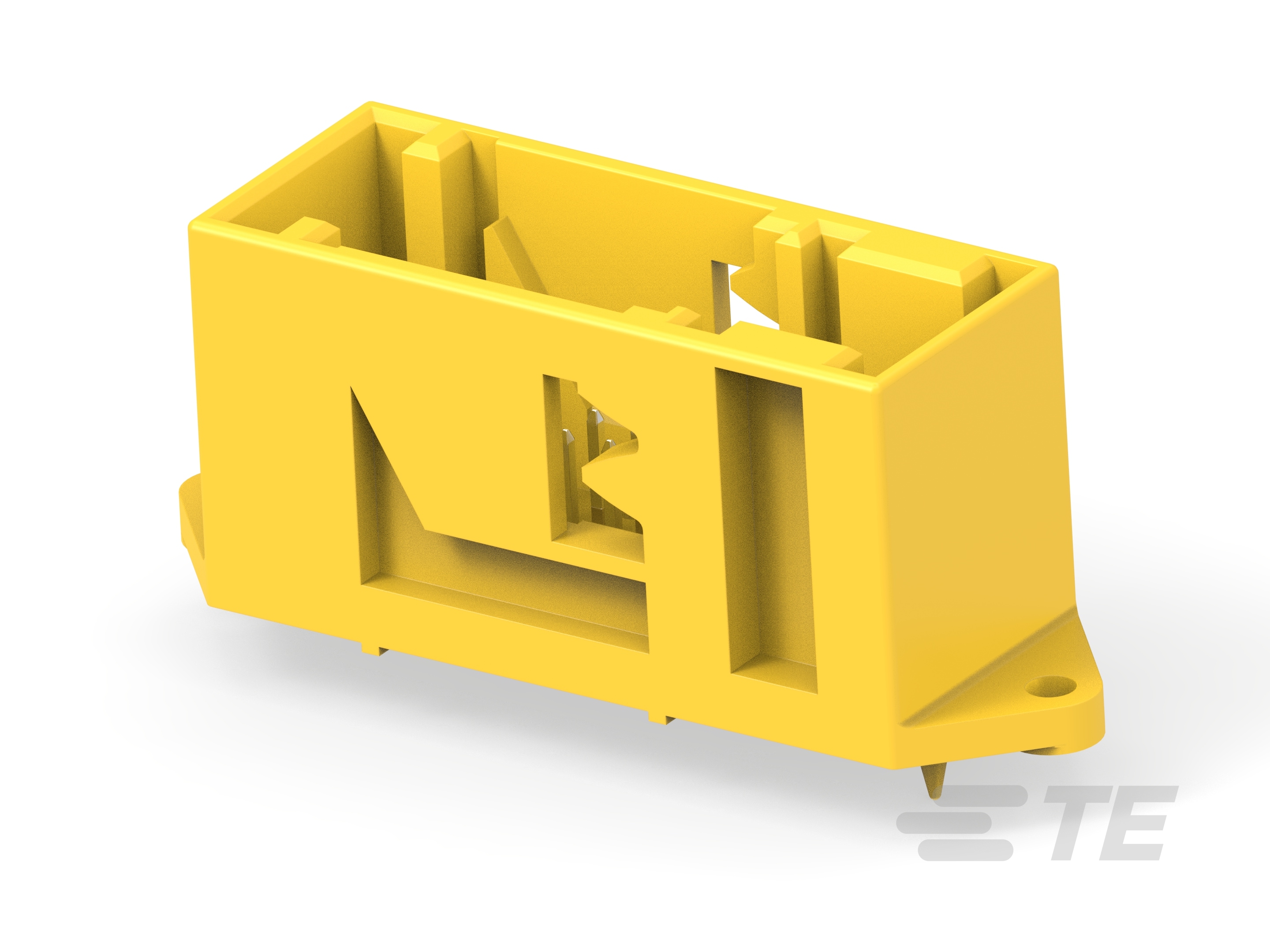

TE Connectivity AMP Connectors 185226-1	Glass Filled Polybutylene Terephthalate (PBT)	0.128 in	2	Through Hole	All	Board Guide Mounting Flange	-40 °C	85 °C	Tin	0.1 in	0.823 in	Male Pin	Tin	Friction Lock	0.264 in	Board Cable/Wire	Header	Square	Shrouded - 4 Wall	26	0.1 in	Solder	Yellow	Automotive
TE Connectivity AMP Connectors 185226-2	Glass Filled Polybutylene Terephthalate (PBT)	0.128 in	2	Through Hole	All	Board Guide Mounting Flange	-40 °C	85 °C	Tin	0.1 in	0.823 in	Male Pin	Tin	Friction Lock	0.264 in	Board Cable/Wire	Header	Square	Shrouded - 4 Wall	26	0.1 in	Solder	Blue	Automotive
TE Connectivity AMP Connectors 185226-4
