8535I-21 Series

Low Skew,1-to-2 LVCMOS/LVTTL-to-3.3V LVPECL Clock Generator

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,1-to-2 LVCMOS/LVTTL-to-3.3V LVPECL Clock Generator

Part	Package Width	Package Name	Package Length	Type	Input Ratio	Output Ratio	Input	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Differential Output	Differential Input	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Frequency - Max	Number of Circuits	Output
Renesas Electronics Corporation 8535AGI-21LFT	4.4 mm	14-TSSOP	0.173 in	Fanout Buffer (Distribution) Multiplexer	2	2	LVCMOS LVTTL	3.135 V	3.465 V	Yes	No	-40 °C	85 °C	Surface Mount	266 MHz	1	LVPECL
Renesas Electronics Corporation 8535AGI-21LF	4.4 mm	14-TSSOP	0.173 in	Fanout Buffer (Distribution) Multiplexer	2	2	LVCMOS LVTTL	3.135 V	3.465 V	Yes	No	-40 °C	85 °C	Surface Mount	266 MHz	1	LVPECL

Catalog

Low Skew,1-to-2 LVCMOS/LVTTL-to-3.3V LVPECL Clock Generator

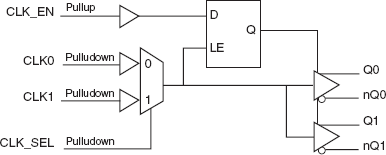

Description
