TC622 Series

Catalog

LOW COST SINGLE TRIP POINT TEMPERATURE SENSOR

Part	Operating Temperature (Max)	Operating Temperature (Min)	Accuracy	Output	Current - Supply	Switching Temperature (Options)	Mounting Type	Trip Temperature Threshold	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Name	Output Function	Selectable Hysteresis	Package Length	Package Width	Output Type	Package / Case
Microchip Technology TC622COA	70 °C	0 °C	5 °C	Active High	600 µA	Programmable	Surface Mount	Hot	4.5 V	18 V	8-SOIC	/OverTemp OverTemp	No	0.154 in	3.9 mm	Push-Pull
Microchip Technology TC622VPA	125 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Through Hole	Hot	4.5 V	18 V	8-DIP 8-PDIP	/OverTemp OverTemp	No	0.3 in	7.62 mm	Push-Pull
Microchip Technology TC622EPA	85 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Through Hole	Hot	4.5 V	18 V	8-DIP 8-PDIP	/OverTemp OverTemp	No	0.26 in	6.6 mm	Push-Pull
Microchip Technology TC622COA713	70 °C	0 °C	5 °C	Active High	600 µA	Programmable	Surface Mount	Hot	4.5 V	18 V	8-SOIC	/OverTemp OverTemp	No	0.154 in	3.9 mm	Push-Pull
Microchip Technology TC622VOA	125 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Surface Mount	Hot	4.5 V	18 V	8-SOIC	/OverTemp OverTemp	No	0.154 in	3.9 mm	Push-Pull

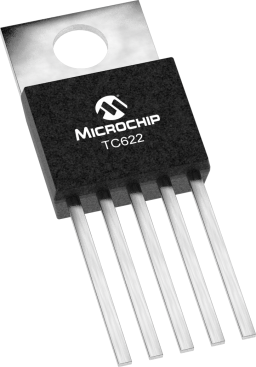

Microchip Technology TC622VAT	125 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Through Hole	Hot	4.5 V	18 V	TO-220-5	/OverTemp OverTemp	No			Push-Pull	TO-220-5
Microchip Technology TC622EOA713	85 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Surface Mount	Hot	4.5 V	18 V	8-SOIC	/OverTemp OverTemp	No	0.154 in	3.9 mm	Push-Pull
Microchip Technology TC622CPA	70 °C	0 °C	5 °C	Active High	600 µA	Programmable	Through Hole	Hot	4.5 V	18 V	8-DIP 8-PDIP	/OverTemp OverTemp	No	0.3 in	7.62 mm	Push-Pull
Microchip Technology TC622EAT	85 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Through Hole	Hot	4.5 V	18 V	TO-220-5	/OverTemp OverTemp	No			Push-Pull	TO-220-5
Microchip Technology TC622VOA713	125 °C	-40 °C	5 °C	Active High	600 µA	Programmable	Surface Mount	Hot	4.5 V	18 V	8-SOIC	/OverTemp OverTemp	No	0.154 in	3.9 mm	Push-Pull
