GBPC2506 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
BRIDGE RECT 1P 600V 25A GBPC-W
| Part | Package / Case | Current - Average Rectified (Io) | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Technology | Voltage - Forward (Vf) (Max) | Diode Type | Voltage - Peak Reverse (Max) | Current - Reverse Leakage |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 4-Square GBPC-W | 25 A | GBPC-W | -55 °C | 150 °C | Through Hole | Standard | 1.1 V 1.1 V | Single Phase | 600 V | 5 µA |
 Vishay General Semiconductor - Diodes Division | 4-Square GBPC | 25 A | GBPC | -55 °C | 150 °C | QC Terminal | Standard | 1.1 V 1.1 V | Single Phase | 600 V | 5 µA |

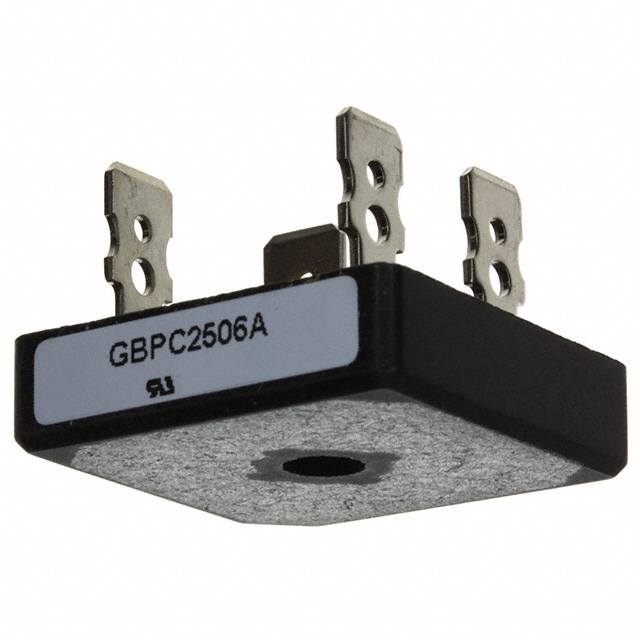

 Vishay General Semiconductor - Diodes Division | 4-Square GBPC-A | 25 A | GBPC-A | -55 °C | 150 °C | QC Terminal | Standard | Single Phase | 600 V | 2 mA | |
 Vishay General Semiconductor - Diodes Division | 4-Square GBPC | 25 A | GBPC | QC Terminal | Standard | 1.1 V 1.1 V | Single Phase | 600 V | 5 µA |
