644702 Series

Catalog

CONN RCPT 9POS IDC 22AWG GOLD

Part	Cable Termination	Features	Contact Finish Thickness	Number of Rows	Mounting Type	Wire Type	Number of Positions	Pitch	Fastening Type	Contact Finish	Wire Gauge	Connector Type	Contact Type	Color
TE Connectivity AMP Connectors 3-644702-9	IDC	Feed Through	30 µin	1	Free Hanging (In-Line) Right Angle	Discrete Ribbon Cable	9	0.1 in	Locking Ramp	Gold	22 AWG	Receptacle	Female Socket	Red
TE Connectivity AMP Connectors 644702-8	IDC	Feed Through	30 µin	1	Free Hanging (In-Line) Right Angle	Discrete Ribbon Cable	8	0.1 in	Locking Ramp	Gold	22 AWG	Receptacle	Female Socket	Red
TE Connectivity AMP Connectors 3-644702-4	IDC	Feed Through	30 µin	1	Free Hanging (In-Line) Right Angle	Discrete Ribbon Cable	4	0.1 in	Locking Ramp	Gold	22 AWG	Receptacle	Female Socket	Red
TE Connectivity AMP Connectors 644702-3	IDC	Feed Through	30 µin	1	Free Hanging (In-Line) Right Angle	Discrete Ribbon Cable	3	0.1 in	Locking Ramp	Gold	22 AWG	Receptacle	Female Socket	Red
TE Connectivity AMP Connectors 644702-7	IDC	Feed Through Polarizing Key	30 µin	1	Free Hanging (In-Line)	Discrete Ribbon Cable	7	0.1 in	Locking Ramp	Gold	22 AWG	Receptacle	Female Socket	Red

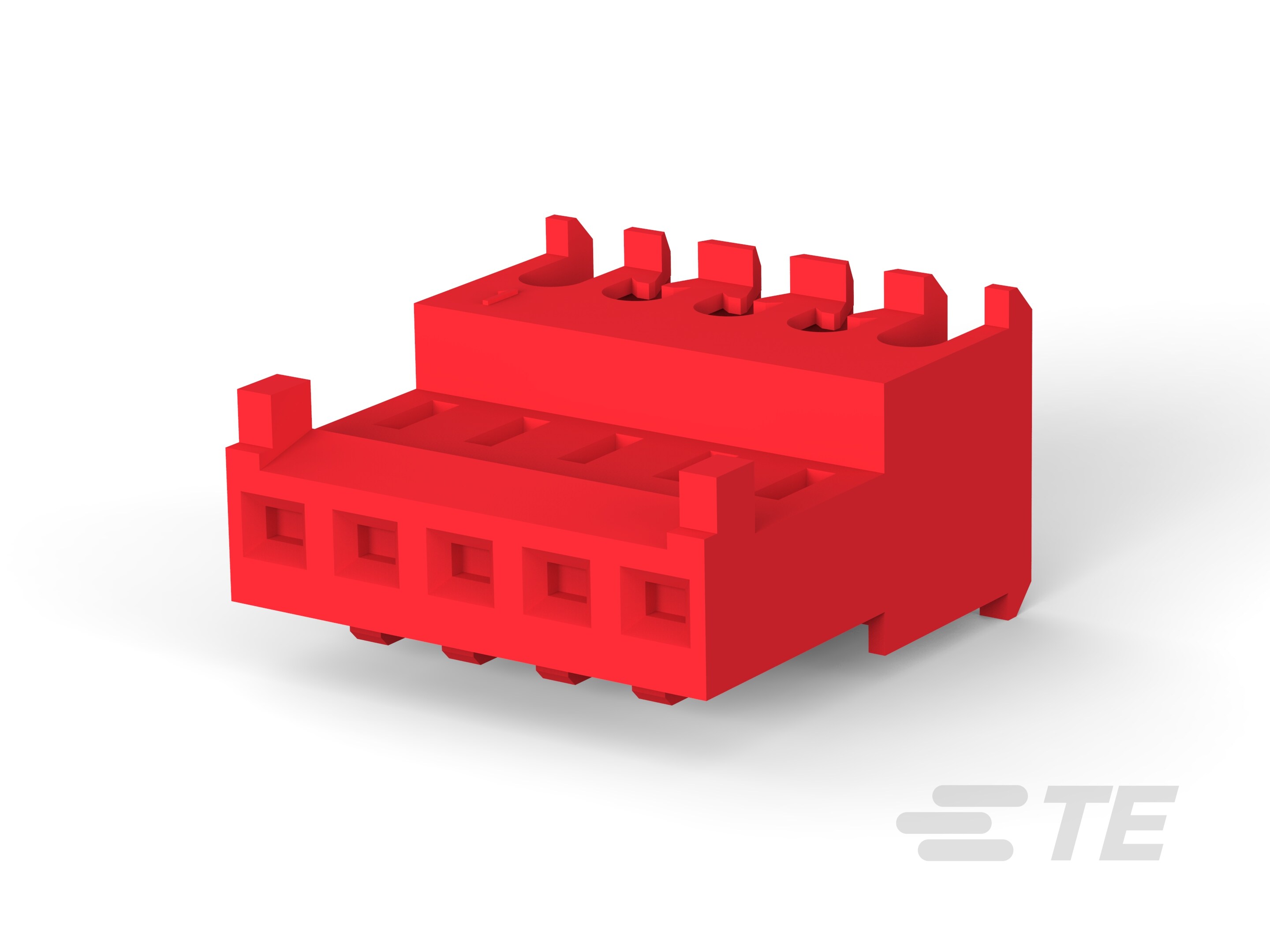

TE Connectivity AMP Connectors 3-644702-5	IDC	Feed Through	30 µin	1	Free Hanging (In-Line) Right Angle	Discrete Ribbon Cable	5	0.1 in	Locking Ramp	Gold	22 AWG	Receptacle	Female Socket	Red
