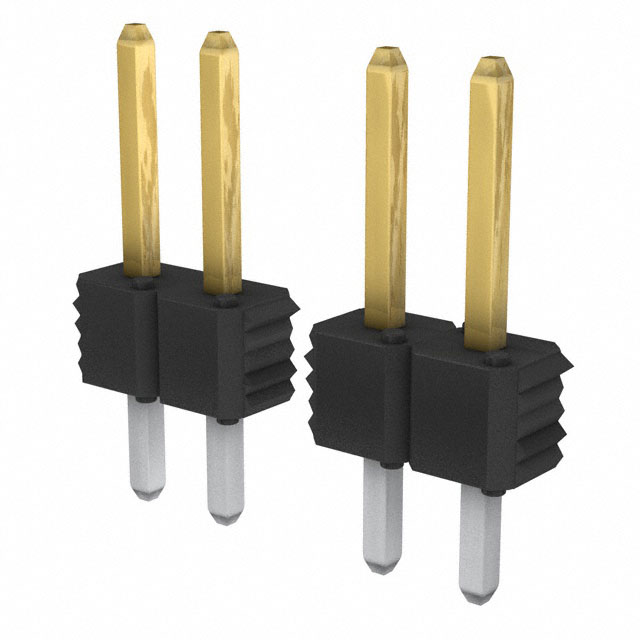

54101 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

...

Part	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post	Contact Material	Insulation Color	Contact Shape	Number of Positions	Contact Finish - Post	Termination	Number of Positions Loaded	Current Rating (Per Contact)	Overall Contact Length	Shrouding	Mounting Type	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Number of Rows	Contact Length - Mating	Contact Type	Pitch - Mating	Insulation Height	Style	Number of Positions	Number of Positions Loaded
Amphenol ICC (FCI) 54101-G0504LF	100 Ąin	Gold GXT™	0.095 in	Phosphor Bronze	Black	Square	40	Tin	Solder	All	3 A	0.425 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	30 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin	0.1 in	0.1 in	Board
Amphenol ICC (FCI) 54101-G3003LF	100 Ąin	Gold GXT™	0.12 in	Phosphor Bronze	Black	Square	3	Tin	Solder	All	3 A	0.538 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	30 µin	125 °C	-65 °C	Header	1	0.318 in	Male Pin	0.1 in	0.1 in	Board
Amphenol ICC (FCI) 54101-T30-06		Tin	0.12 in	Phosphor Bronze	Black	Square	6		Solder	All	3 A	0.538 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	100 µin	125 °C	-65 °C	Header	1	0.318 in	Male Pin	0.1 in	0.1 in	Board
Amphenol ICC (FCI) 54101-S0800LF	100 Ąin	Gold GXT™	0.12 in	Phosphor Bronze	Black	Square		Tin	Solder	All	3 A	0.45 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	15 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin	0.1 in	0.1 in	Board	Cuttable
Amphenol ICC (FCI) 54101-S0505A02LF	100 Ąin	Gold GXT™	0.095 in	Phosphor Bronze	Black	Square	5	Tin	Solder		3 A	0.425 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	15 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin	0.1 in	0.1 in	Board		4
Amphenol ICC (FCI) 54101-S0801LF		Tin	0.12 in	Phosphor Bronze	Black	Square	1	Tin	Solder	All	3 A	0.45 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	15 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin		0.1 in	Board
Amphenol ICC (FCI) 54101-T0805LF	100 Ąin	Tin	0.12 in	Phosphor Bronze	Black	Square	5	Tin	Solder	All	3 A	0.45 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	100 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin	0.1 in	0.1 in	Board
Amphenol ICC (FCI) 54101-T08-36		Tin	0.12 in	Phosphor Bronze	Black	Square	36		Solder	All	3 A	0.45 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	100 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin	0.1 in	0.1 in	Board
Amphenol ICC (FCI) 54101-T3002LF	100 Ąin	Tin	0.12 in	Phosphor Bronze	Black	Square	2	Tin	Solder	All	3 A	0.538 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	100 µin	125 °C	-65 °C	Header	1	0.318 in	Male Pin	0.1 in	0.1 in	Board
Amphenol ICC (FCI) 54101-S05-00		Gold GXT™	0.095 in	Phosphor Bronze	Black	Square			Solder	All	3 A	0.425 in	Unshrouded	Through Hole	Push-Pull	UL94 V-0	15 µin	125 °C	-65 °C	Header	1	0.23 in	Male Pin	0.1 in	0.1 in	Board	Cuttable
