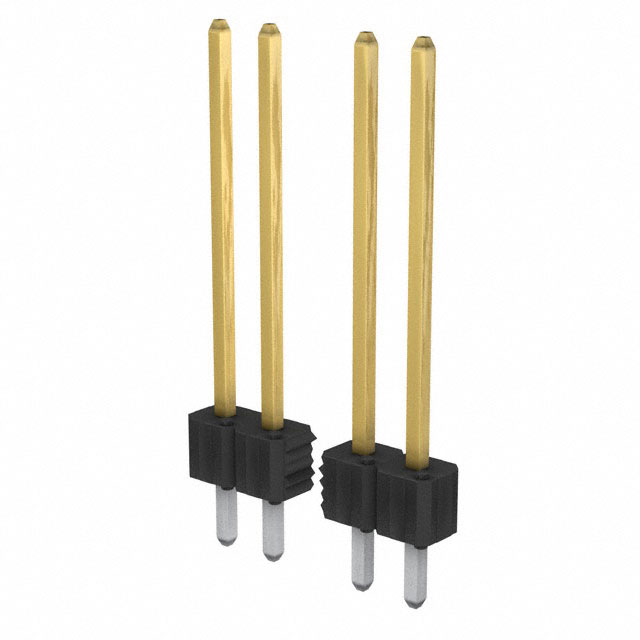

87452 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN HEADER VERT 16POS 2.54MM
| Part | Material Flammability Rating | Number of Rows | Number of Positions | Pitch - Mating | Overall Contact Length | Contact Material | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Type | Contact Shape | Number of Positions Loaded | Style | Contact Length - Mating | Fastening Type | Contact Length - Post | Termination | Contact Finish - Mating | Shrouding | Insulation Height | Mounting Type | Connector Type | Insulation Material | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | UL94 V-0 | 1 | 16 | 0.1 in | 0.84 in | Phosphor Bronze | 100 µin | Tin | Male Pin | Square | All | Board | 0.62 in | Push-Pull | 0.12 in | Press-Fit Solder | Tin | Unshrouded | 0.1 in | Through Hole | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) | Black |
 Amphenol ICC (FCI) | UL94 V-0 | 1 | 16 | 0.1 in | 0.84 in | Phosphor Bronze | 100 µin | Male Pin | Square | All | Board | 0.62 in | Push-Pull | 0.12 in | Press-Fit Solder | Tin | Unshrouded | 0.1 in | Through Hole | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) | Black | |
 Amphenol ICC (FCI) | UL94 V-0 | 1 | 6 | 0.1 in | 0.84 in | Phosphor Bronze | 30 µin | Male Pin | Square | All | Board | 0.62 in | Push-Pull | 0.12 in | Press-Fit Solder | Gold GXT™ | Unshrouded | 0.1 in | Through Hole | Header | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) | Black |
