051191 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 8POS 2.50MM

Part	Note	Mounting Type	Contact Type	Contact Termination	Number of Rows	Insulation Material	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Number of Positions
Molex 0511910800	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	8
Molex 0511910300	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	3
Molex 0511910600	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	6
Molex 0511911200	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	12
Molex 0511911000	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	10

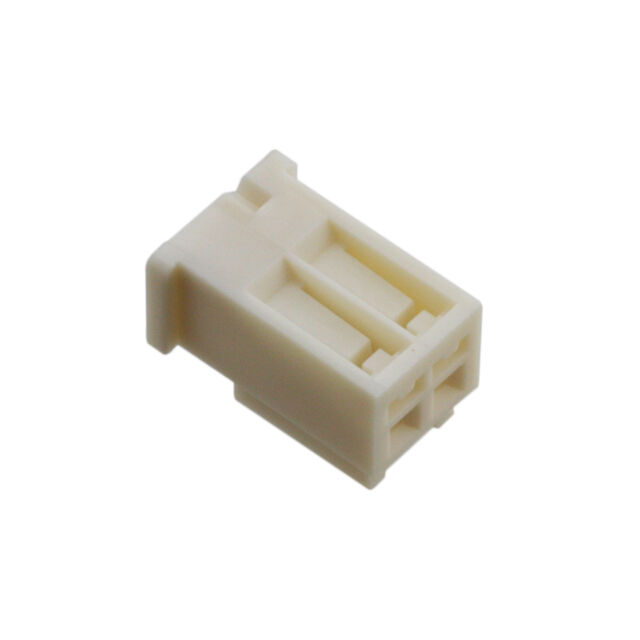

Molex 0511910200	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	2
Molex 0511911500	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	1	Nylon 6/6 Polyamide (PA66)	0.098 in	-40 °C	105 °C	Receptacle	15
