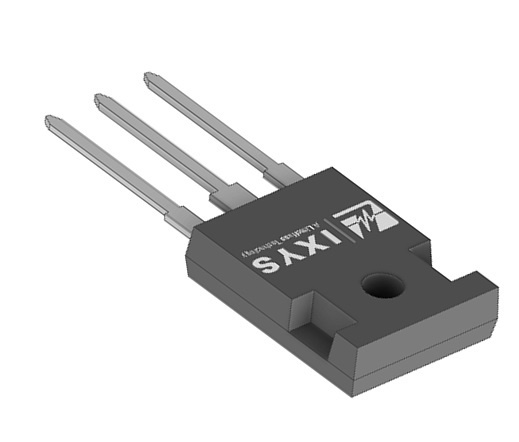

IXFH60N60X3 Series

Discrete MOSFET 60A 600V X3 TO247

Catalog

Discrete MOSFET 60A 600V X3 TO247

Part	Drain to Source Voltage (Vdss)	Technology	Package / Case	Power Dissipation (Max)	Vgs (Max)	Mounting Type	Input Capacitance (Ciss) (Max)	Rds On (Max)	FET Type	Vgs(th) (Max)	Gate Charge (Max)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) (Tc)	Package Name	Operating Temperature (Min)	Operating Temperature (Max)
LITTELFUSE IXFH60N60X3	600 V	MOSFET (Metal Oxide)	TO-247-3	625 W	20 V	Through Hole	3450 pF	51 mOhm	N-Channel	5 V	51 nC	10 V	60 A	TO-247	-55 °C	150 °C

Catalog

Discrete MOSFET 60A 600V X3 TO247

Description

The 600V X3-Class Ultra Junction MOSFET IXFH60N60X3 is available in 60A nominal current rating and TO-247 package. These Power MOSFETs feature significantly reduced channel resistance RDS(on) and gate charge Qg. They feature the lowest figures of merit (FOM) RDS(on)xQg and RDS(on)xRthJC. These benefits enable designers to achieve higher efficiency using simplified thermal design. This HiPerFET™ series of power MOSFETs feature body diodes which offer low reverse recovery charge (QRM) and short reverse recovery time (trr).
