440055 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 8POS 2MM

Part	Contact Length - Mating	Contact Material	Number of Positions	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Pitch - Mating	Material Flammability Rating	Connector Type	Contact Finish - Post	Style	Contact Finish Thickness - Mating	Current Rating	Number of Rows	Number of Positions Loaded	Insulation Color	Insulation Material	Contact Finish - Mating	Mounting Type	Contact Length - Post	Voltage Rating	Contact Type	Insulation Height	Shrouding	Contact Finish Thickness - Post	Applications

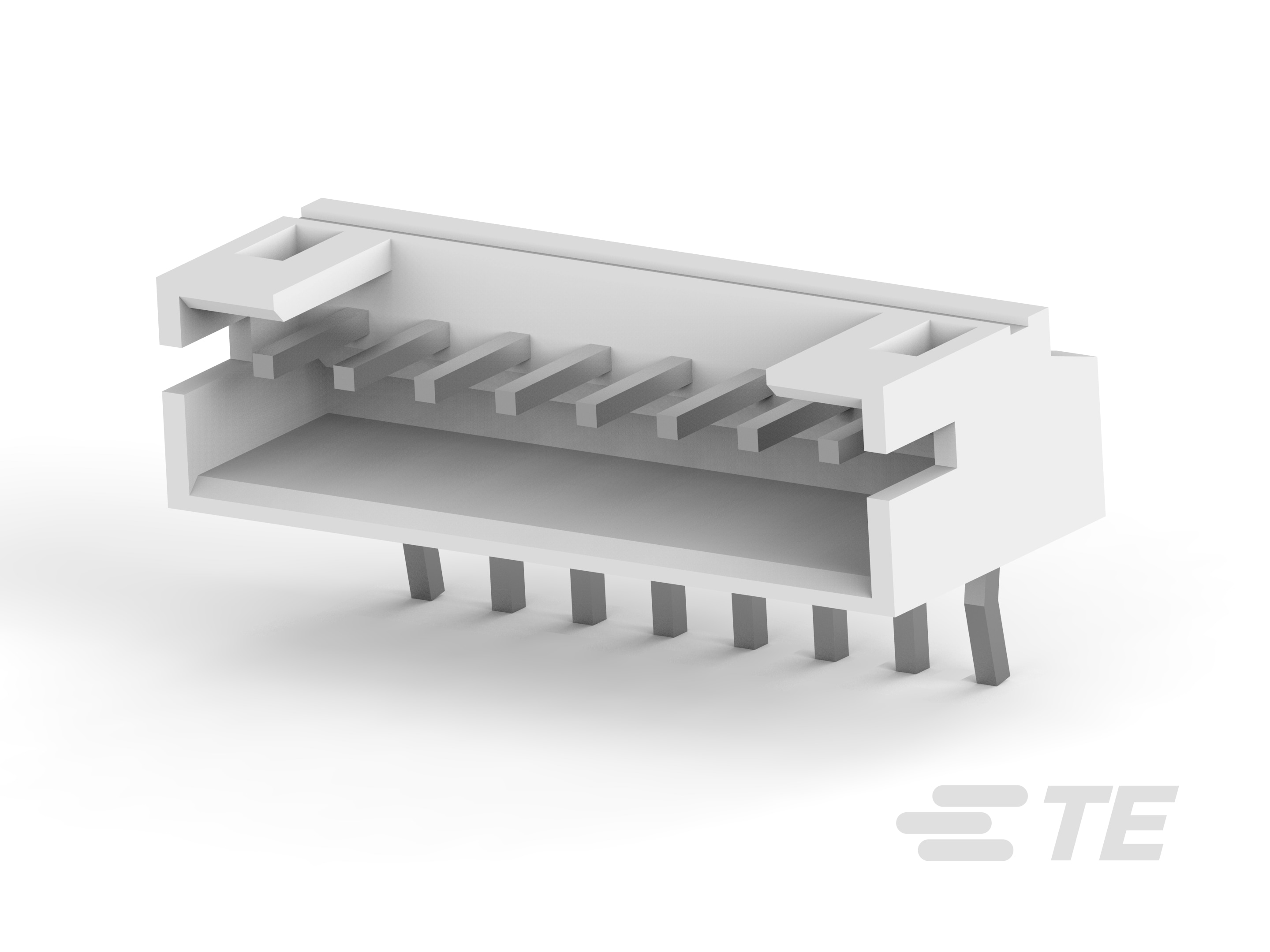

TE Connectivity AMP Connectors 440055-8	0.138 in	Brass	8	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical
TE Connectivity AMP Connectors 1-440055-3	0.138 in	Brass	13	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical
TE Connectivity AMP Connectors 440055-9	0.138 in	Brass	9	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical

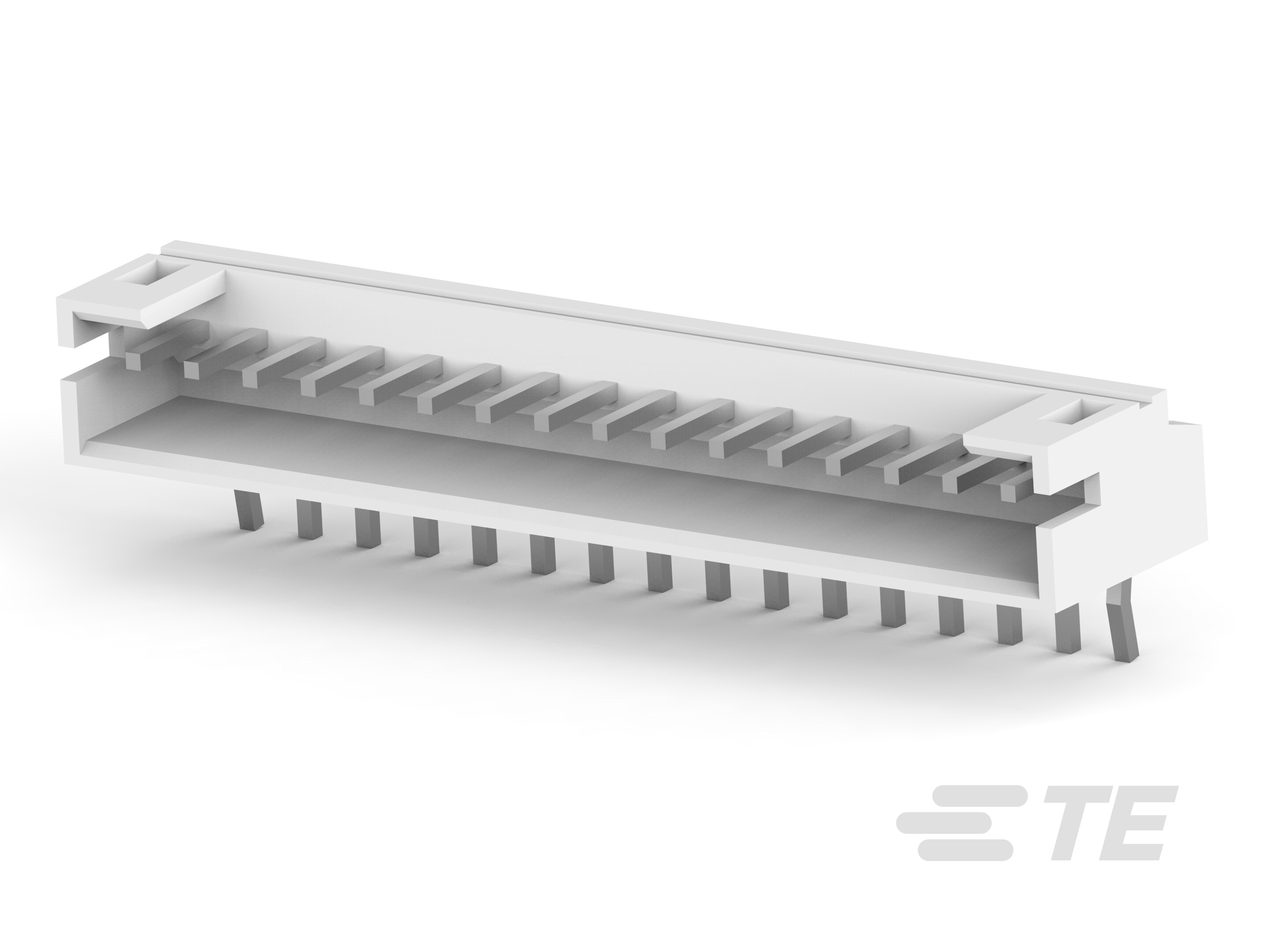

TE Connectivity AMP Connectors 1-440055-6	0.138 in	Brass	16	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical

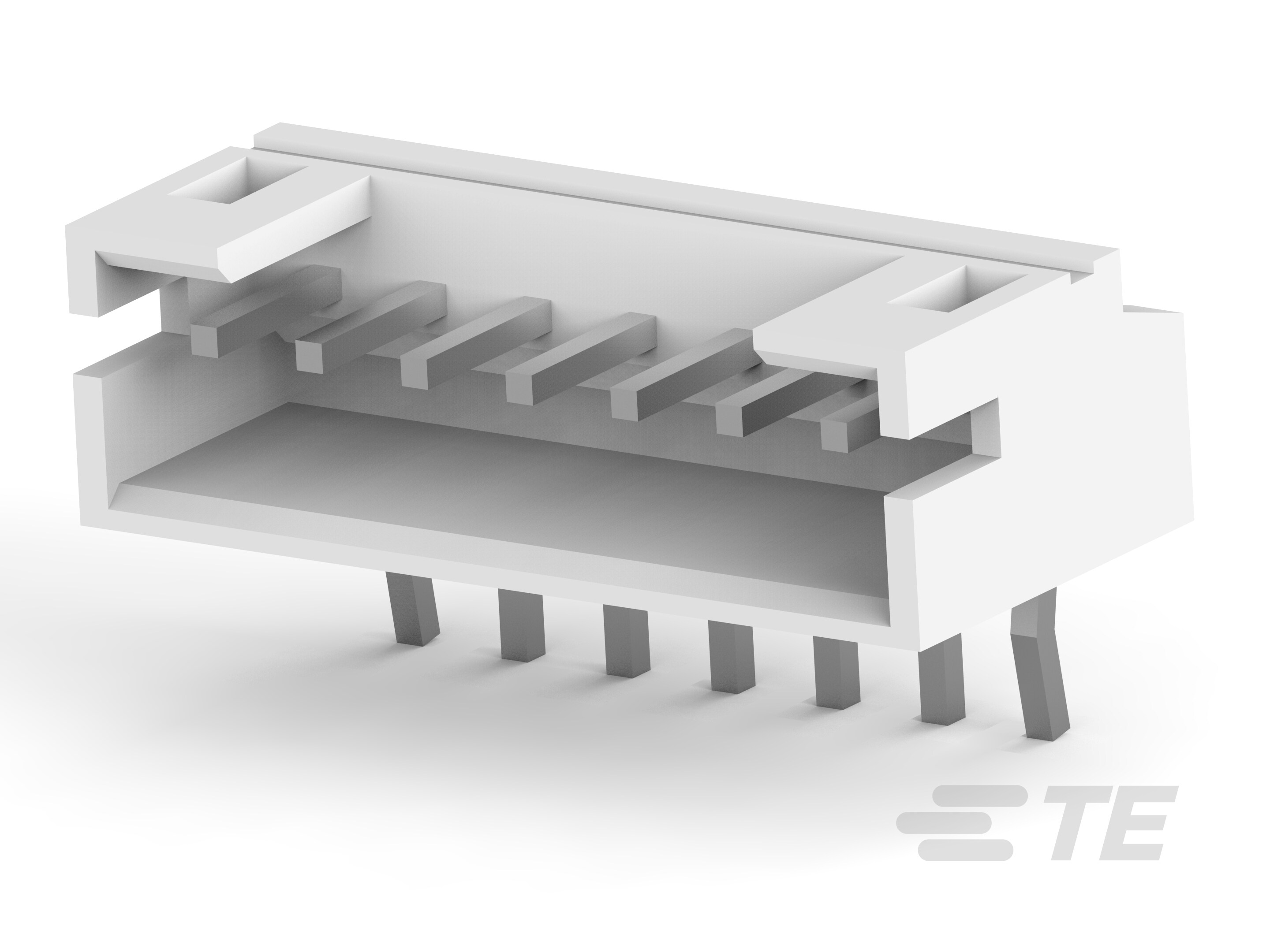

TE Connectivity AMP Connectors 440055-7	0.138 in	Brass	7	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical
TE Connectivity AMP Connectors 440055-3	0.138 in	Brass	3	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical
TE Connectivity AMP Connectors 4-440055-3	0.138 in	Brass	3	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Yellow	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical

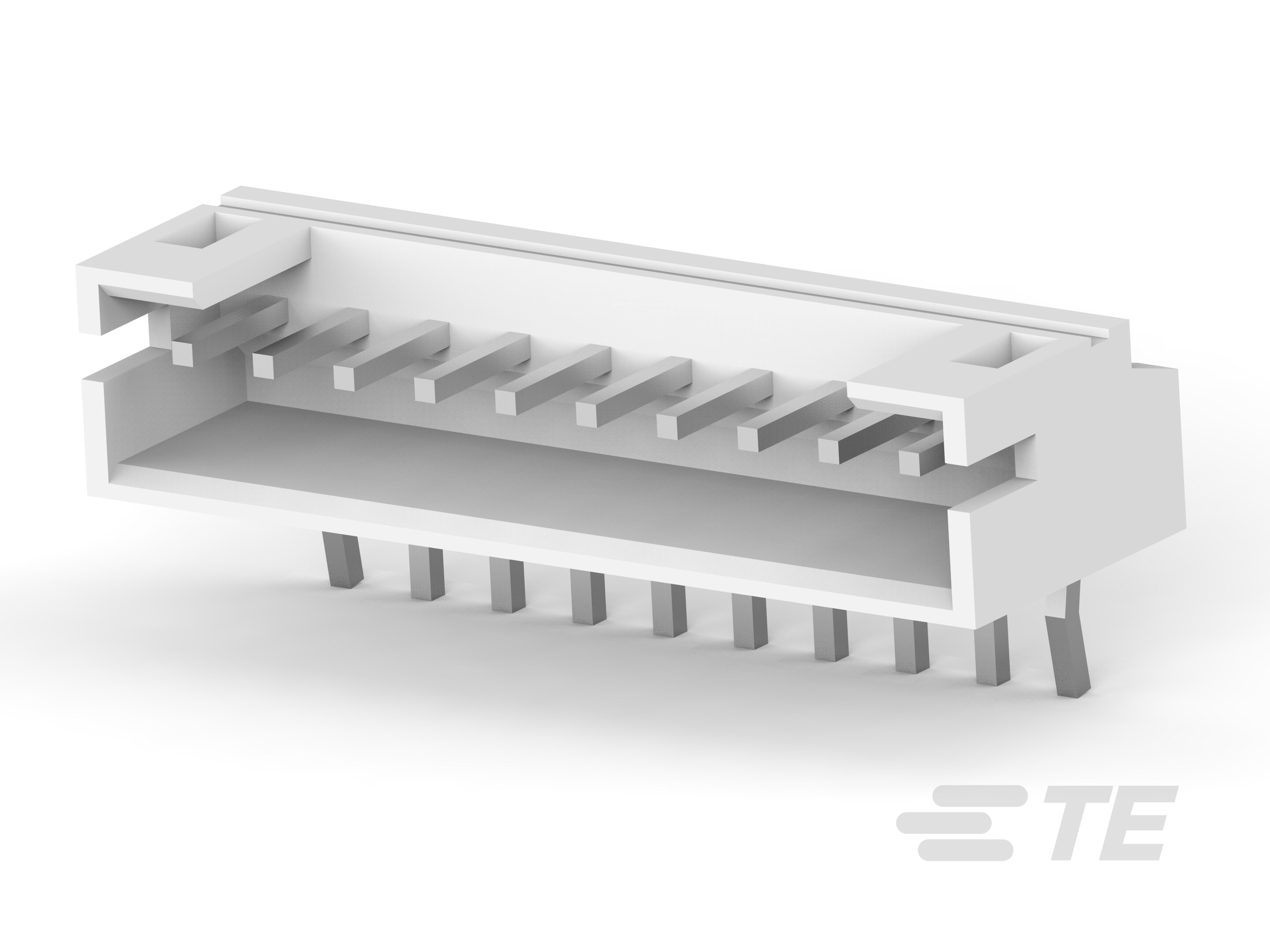

TE Connectivity AMP Connectors 1-440055-0	0.138 in	Brass	10	Press-Fit Solder	85 °C	-25 °C	Square	0.079 in	UL94 V-0	Header	Tin	Board Cable/Wire	80 µin	3 A	1	All	Natural	Thermoplastic	Tin	Right Angle Through Hole	0.134 in	250 V	Male Pin	0.195 in	Shrouded - 3 Wall	80 µin	Automotive General Purpose Industrial Medical
