C01610C012 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

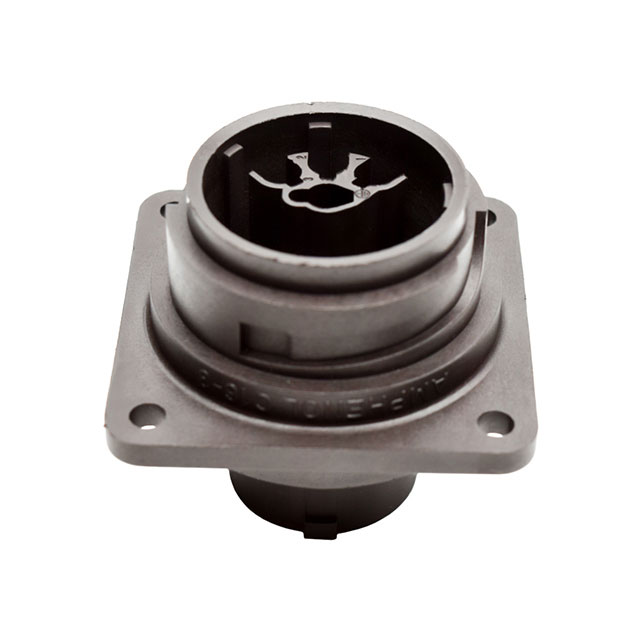

CONN RCPT HSNG MALE 13POS PNL MT
| Part | Mounting Feature | Shell Material | Connector Type | Position Types | Number of Positions | Material Flammability Rating | Shell Size - Insert | Shell Size - Insert | Contact Size | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Fastening Type | Contact Type | Shielding | Orientation | Type | Contact Shape | Note | Ingress Protection IP Rating | Ingress Protection Description | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Flange | Nylon 6/6 Polyamide (PA66) | Receptacle Housing | PE | 13 | UL94 V-0 | 2 | 2 | 1.6 mm 2.5 mm | 125 °C | -40 °C | Panel Mount | Bayonet Lock | Crimp | Unshielded | N (Normal) | For Male Pins | Circular | Contacts Not Included | IP65 | Dust Tight Water Resistant | Black |
