53836 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

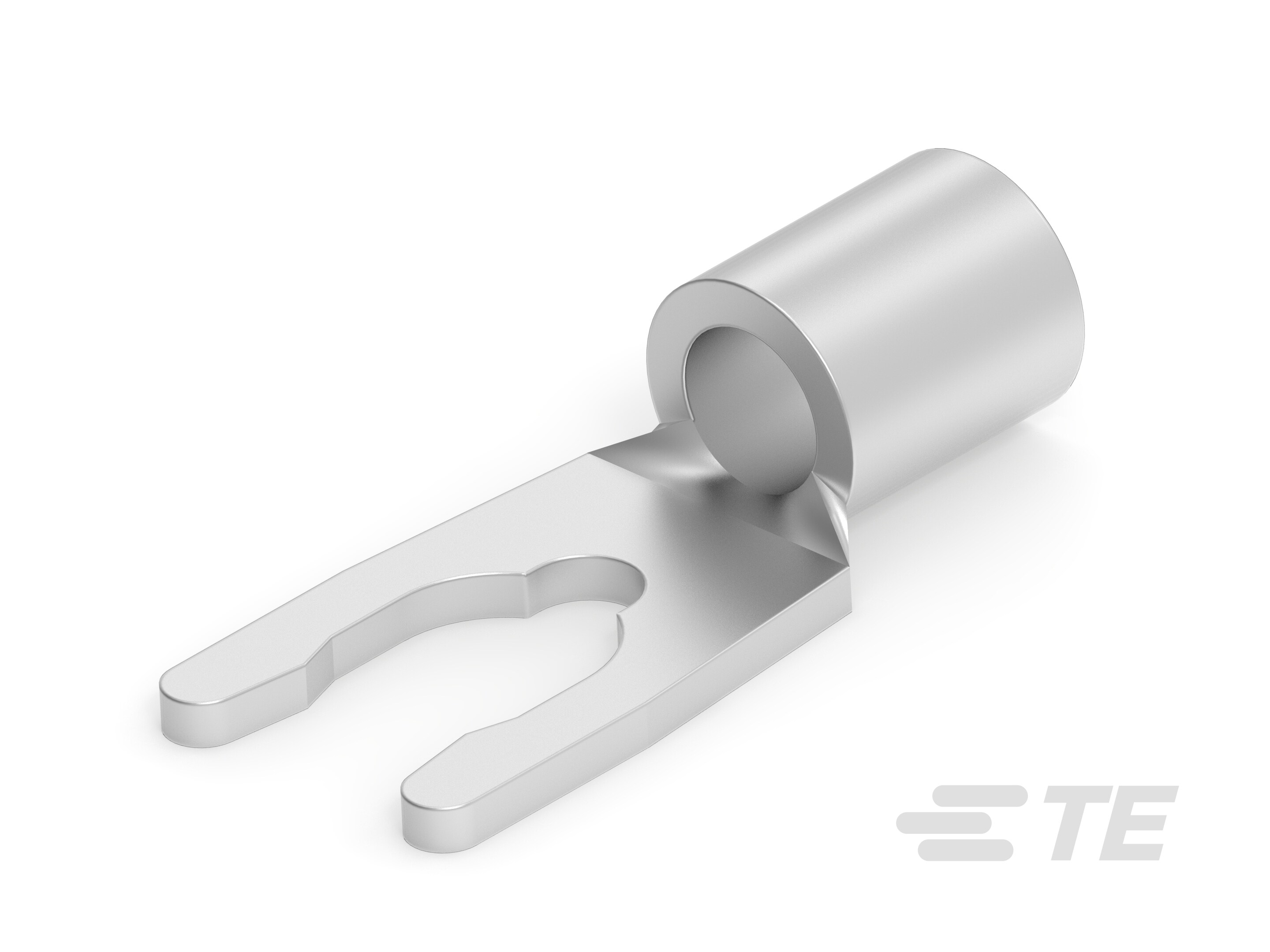

CONN SPADE TERM 10-12AWG #10
| Part | Insulation | Stud/Tab Size | Contact Finish | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Terminal Type | Length - Overall | Features | Contact Material | Termination | Width - Outer Edges | Mounting Type | Length - Termination | Tongue Inside Opening | Length - Ring Center to Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Non-Insulated | 10 Stud | Tin | 12 AWG | 10 AWG | Snap Spring | 0.777 in | Brazed Seam Serrated Termination | Phosphor Bronze | Crimp | 0.312 in | Free Hanging (In-Line) | 0.278 in | 0.19 in | 0.276 in |
