213353 Series
Manufacturer: Molex
Beta
⌘K

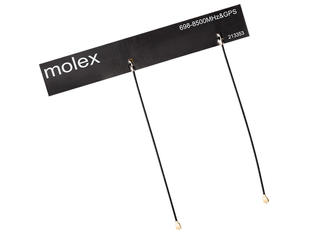

LTE/GPS COMBO FLEXIBLE ANTENNA, 100.00MM CABLE LENGTH, COMPATIBLE WITH U.FL/I-PEX MHF CONNECTORS
| Part | Features | Frequency Group | Number of Bands | Return Loss | Return Loss | Height (Max) | Applications | RF Family/Standard | Mounting Type | Termination Type | Frequency (Center/Band) | Antenna Type | Frequency Range (Band 2) Maximum | Frequency Range (Band 4) Minimum | Frequency Range (Band 10) Maximum | Frequency Range (Band 8) Maximum | Frequency Range (Band 5) Maximum | Frequency Range (Band 8) Minimum | Frequency Range (Band 9) Maximum | Frequency Range (Band 10) Minimum | Frequency Range (Band 4) Maximum | Frequency Range (Band 2) Minimum | Frequency Range (Band 5) Minimum | Frequency Range (Band 6) Minimum | Frequency Range (Band 1) Minimum | Frequency Range (Band 7) Maximum | Frequency Range (Band 3) Maximum | Frequency Range (Band 1) Maximum | Frequency Range (Band 6) Maximum | Frequency Range (Band 9) Minimum | Frequency Range (Band 7) Minimum | Frequency Range (Band 3) Minimum | Gain | Frequency (Center/Band) - 7 | Frequency (Center/Band) - 10 | Frequency (Center/Band) - 1 | Frequency (Center/Band) - 6 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 8 | Frequency (Center/Band) - 4 | Frequency (Center/Band) - 5 | Frequency (Center/Band) - 9 | Frequency (Center/Band) - 2 | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 100mm Cable | Wide Band | 10 | -10dB -5dB | -10 dB -5 dB | 0.004 in | BEIDOU GLONASS GPS LTE UWB | Cellular Navigation | Adhesive | I-PEX MHF1 U.FL | 1.45GHz 1.561GHz 1.575GHz 1.602GHz 1.6GHz 2.2GHz 3.75GHz 4.7GHz 7.2GHz 829MHz | Flat Patch | 1.5 GHz | 1.558 GHz | 8.5 GHz | 4.2 GHz | 1.576 GHz | 3.3 GHz | 5 GHz | 5.9 GHz | 1.563 GHz | 1.4 GHz | 1.573 GHz | 1.598 GHz | 698 MHz | 2.7 GHz | 1.7 GHz | 960 MHz | 1.606 GHz | 4.4 GHz | 1.7 GHz | 1.5 GHz | 2.3 dBi 2.5 dBi 4.5 dBi 5.4 dBi 7 dBi | |||||||||||
 Molex | 150mm Cable | Wide Band | 10 | -10dB -5dB | -10 dB -5 dB | 0.004 in | BEIDOU GLONASS GPS LTE UWB | Cellular Navigation | Adhesive | 1.45GHz 1.5605GHz 1.5745GHz 1.602GHz 1.6GHz 2.2GHz 3.75GHz 4.7GHz 7.2GHz 829MHz | Flat Patch | 1.5 GHz | 1.558 GHz | 8.5 GHz | 4.2 GHz | 1.576 GHz | 3.3 GHz | 5 GHz | 5.9 GHz | 1.563 GHz | 1.4 GHz | 1.573 GHz | 1.598 GHz | 698 MHz | 2.7 GHz | 1.7 GHz | 960 MHz | 1.606 GHz | 4.4 GHz | 1.7 GHz | 1.5 GHz | 2.3 dBi 2.5 dBi 4.5 dBi 5.4 dBi 7 dBi | 2.2 GHz | 7.2 GHz | 829 MHz | 1.602 GHz | 1.6 GHz | 3.75 GHz | 1.5605 GHz | 1.5745 GHz | 4.7 GHz | 1.45 GHz | I-PEX MHF U.FL (UMCC) | |
 Molex | 200mm Cable | Wide Band | 10 | -10dB -5dB | -10 dB -5 dB | 0.004 in | BEIDOU GLONASS GPS LTE UWB | Cellular Navigation | Adhesive | I-PEX MHF1 U.FL | 1.45GHz 1.5605GHz 1.5745GHz 1.602GHz 1.6GHz 2.2GHz 3.75GHz 4.7GHz 7.2GHz 829MHz | Flat Patch | 1.5 GHz | 1.558 GHz | 8.5 GHz | 4.2 GHz | 1.576 GHz | 3.3 GHz | 5 GHz | 5.9 GHz | 1.563 GHz | 1.4 GHz | 1.573 GHz | 1.598 GHz | 698 MHz | 2.7 GHz | 1.7 GHz | 960 MHz | 1.606 GHz | 4.4 GHz | 1.7 GHz | 1.5 GHz | 2.3 dBi 2.5 dBi 4.5 dBi 5.4 dBi 7 dBi | 2.2 GHz | 7.2 GHz | 829 MHz | 1.602 GHz | 1.6 GHz | 3.75 GHz | 1.5605 GHz | 1.5745 GHz | 4.7 GHz | 1.45 GHz |
