5767032 Series

Catalog

CONN PLUG 114POS SMD GOLD

Part	Pitch	Contact Finish Thickness	Number of Positions	Connector Type	Features	Height Above Board	Number of Rows	Mounting Type	Contact Finish	Mated Stacking Height Options
TE Connectivity AMP Connectors 5767032-3	0.025 in	30 µin	114	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	0.78 in	2	Surface Mount	Gold	20mm 29mm

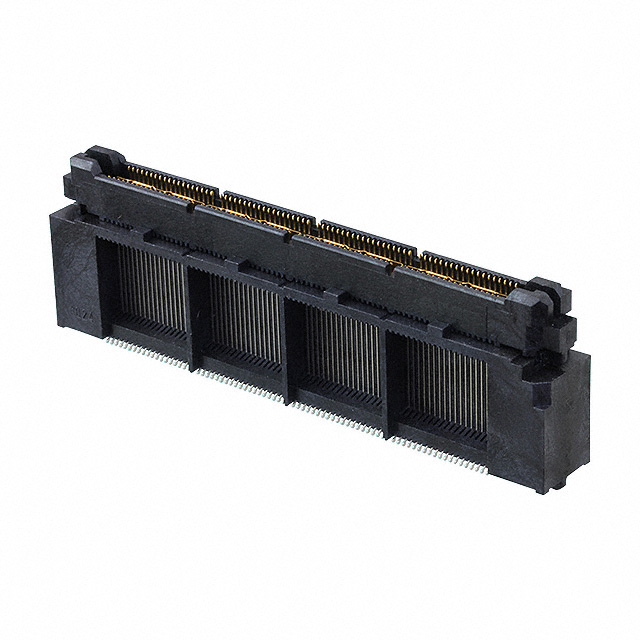

TE Connectivity AMP Connectors 5767032-4	0.025 in	30 µin	152	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	0.78 in	2	Surface Mount	Gold	20mm 29mm
TE Connectivity AMP Connectors 5767032-5	0.025 in	30 µin	190	Outer Shroud Contacts Plug	Board Guide Ground Bus (Plane)	0.78 in	2	Surface Mount	Gold	20mm 29mm
