205341 Series

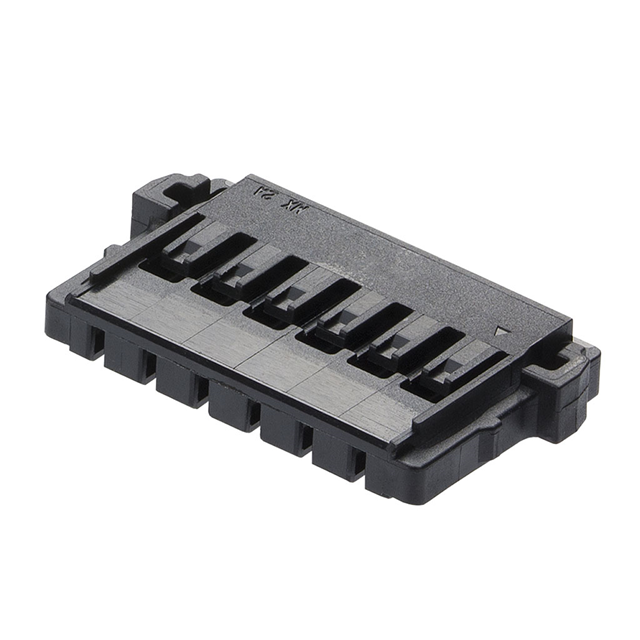

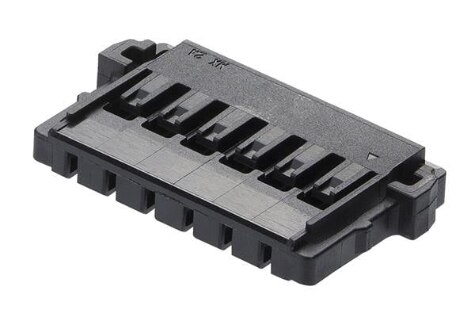

2.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black
Manufacturer: Molex
Catalog
2.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black
Beta
⌘K
2.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black
2.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black
2.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black
| Part | Note | Operating Temperature (Min) | Operating Temperature (Max) | Contact Type | Number of Rows | Connector Type | Color | Mounting Type | Pitch | Insulation Material | Fastening Type | Contact Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Contacts Not Included | -40 °C | 105 °C | Female Blade Socket | 1 | Receptacle | Black | Free Hanging (In-Line) | 0.079 in | Nylon Polyamide (PA) | Friction Lock | Crimp | 4 |
Molex | Contacts Not Included | -40 °C | 105 °C | Female Blade Socket | 1 | Receptacle | Black | Free Hanging (In-Line) | 0.079 in | Nylon Polyamide (PA) | Friction Lock | Crimp | 3 |
Molex | Contacts Not Included | -40 °C | 105 °C | Female Blade Socket | 1 | Receptacle | Black | Free Hanging (In-Line) | 0.079 in | Nylon Polyamide (PA) | Friction Lock | Crimp | 2 |
 Molex | Contacts Not Included | -40 °C | 105 °C | Female Blade Socket | 1 | Receptacle | Black | Free Hanging (In-Line) | 0.079 in | Nylon Polyamide (PA) | Friction Lock | Crimp | 6 |
 Molex | Contacts Not Included | -40 °C | 105 °C | Female Blade Socket | 1 | Receptacle | Black | Free Hanging (In-Line) | 0.079 in | Nylon Polyamide (PA) | Friction Lock | Crimp | 5 |
