2823240 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

18P,2MM,PL HDR,DRVT,SMD,0.38AU,T

Part	Contact Type	Insulation Material	Insulation Height	Contact Shape	Number of Rows	Material Flammability Rating	Contact Material	Style	Number of Positions Loaded	Number of Positions	Features	Fastening Type	Mounting Type	Termination	Connector Type	Pitch - Mating	Current Rating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Shrouding	Voltage Rating	Voltage Rating (Type)	Operating Temperature (Max)	Operating Temperature (Min)	Row Spacing - Mating	Insulation Color	Contact Length - Mating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-2823240-8	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	18	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin

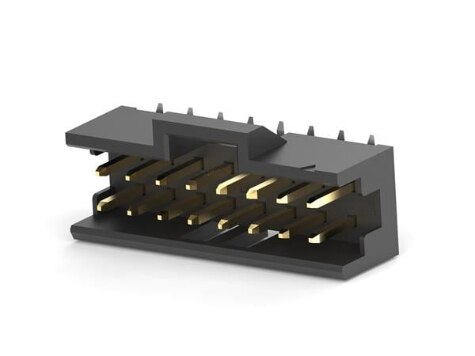

TE Connectivity AMP Connectors 1-2823240-4	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	14	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 3-2823240-0	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	30	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 3-2823240-2	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	32	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 2-2823240-0	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	20	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 1-2823240-0	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	10	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 1-2823240-2	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	12	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 1-2823240-6	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	16	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 2-2823240-4	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	24 pos	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
TE Connectivity AMP Connectors 2823240-8	Male Pin	Thermoplastic	0.217 in	Square	2	UL94 V-0	Phosphor Bronze	Board Board or Cable	All	8	Pick and Place	Latch Holder	Surface Mount	Solder	Header	0.079 in	2 A	15 µin	Tin	Gold	Shrouded - 2 Wall	125 V	DC	125 °C	-40 °C	0.079 in	Black	0.157 in	157.5 Ąin
