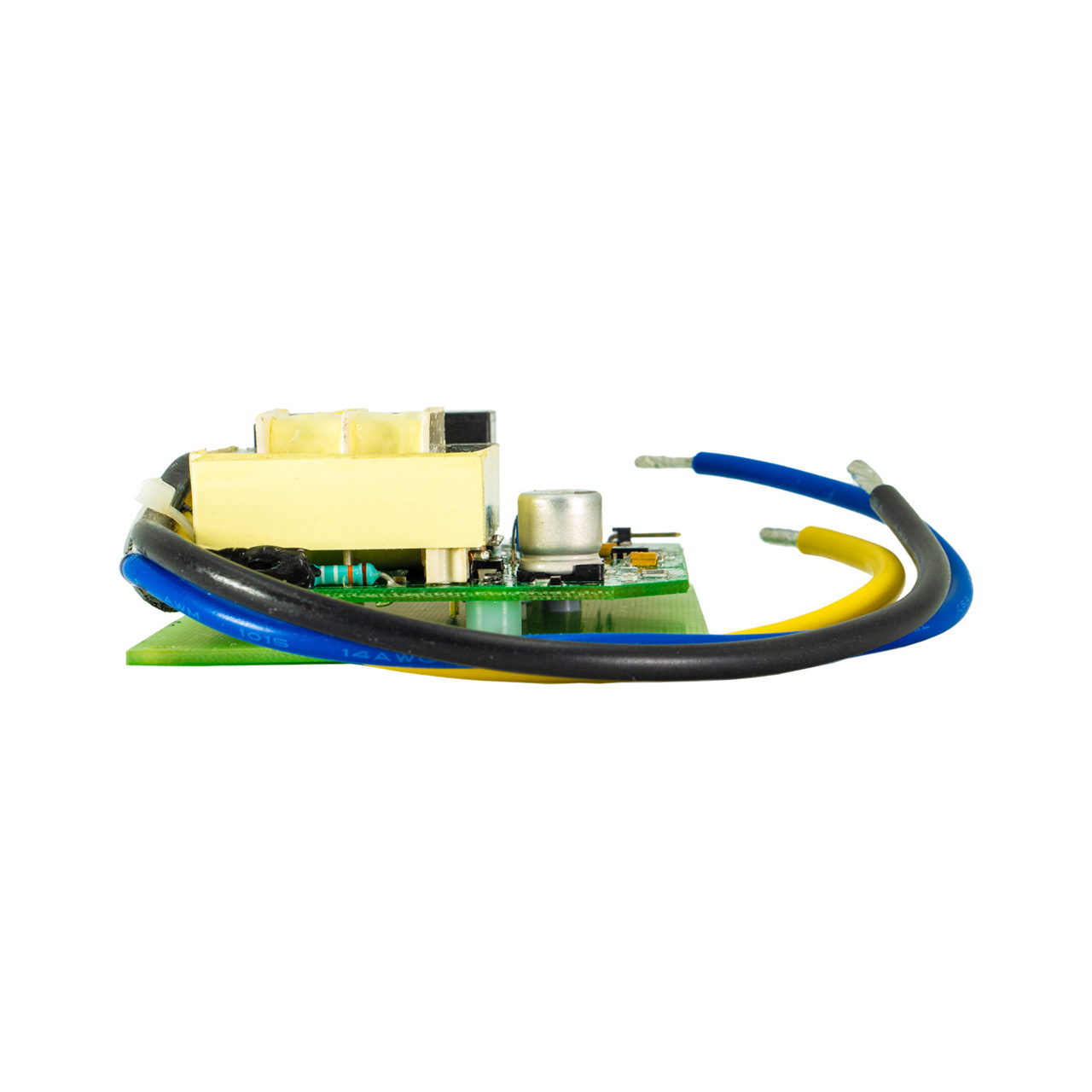

234-P Series

1-PHASE PUMPSAVERPLUS/230V/1HP

Catalog

1-PHASE PUMPSAVERPLUS/230V/1HP

Part	Mounting Type	Voltage - Supply	Trip Status	Contact Rating (Current)	Delay Time Mode	Delay Time (Minimum)	Delay Time (Maximum)	Delay Time (Fixed)	Trip Voltage (Max)	Trip Voltage (Min)	Output Type	Type
LITTELFUSE 234-P	Chassis Mount	230 VAC	Energized High Low	17 A	Fixed	2 Sec	5 Sec	2 Sec	265 V	190 V	Relay	Voltage Sensing AC

Catalog

1-PHASE PUMPSAVERPLUS/230V/1HP

Description

The PumpSaver® Plus Model 234-P protects single-phase pumps with an input voltage value of 230 V ac, an input load range of ⅓–3 hp, and an output load rating of 3 hp @ 240 V ac (17 A maximum).
