52928 Series

Catalog

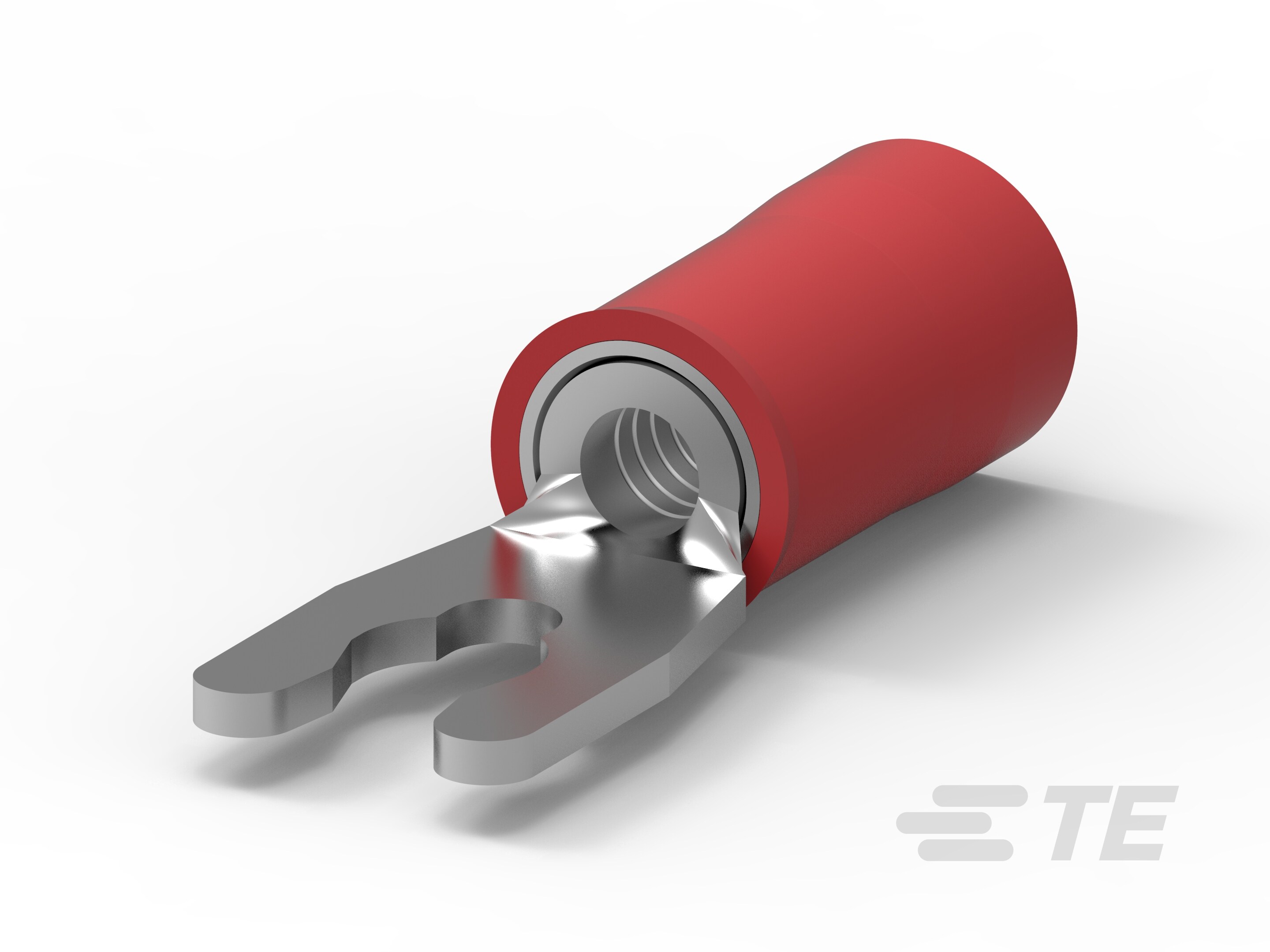

CONN SPADE TERM 16-22AWG #5 RED

Part	Contact Material	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Width - Outer Edges	Features	Stud/Tab Size	Insulation	Length - Overall	Color	Contact Finish	Termination	Material - Insulation	Length - Termination	Length - Ring Center to Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Tongue Inside Opening
TE Connectivity AMP Connectors 52928-1	Phosphor Bronze	Snap Spring	16 AWG	22 AWG	Free Hanging (In-Line)	0.25 in	Serrated Termination	5 Stud	Insulated	0.799 in	Red	Tin	Crimp	Nylon PA Polyamide	0.404 in	0.25 in	0.08 in	0.125 in	0.13 in
TE Connectivity AMP Connectors 8-52928-1	Phosphor Bronze	Snap Spring	16 AWG	22 AWG	Free Hanging (In-Line)	0.25 in	Serrated Termination	5 Stud	Insulated	0.799 in	Red	Tin	Crimp	Nylon PA Polyamide	0.404 in	0.25 in	0.08 in	0.125 in	0.13 in
