ISL22511 Series

Catalog

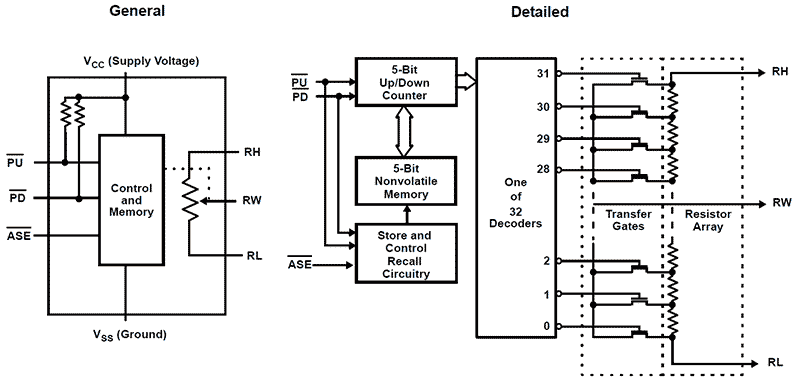

SINGLE PUSH BUTTON CONTROLLED POTENTIOMETER (XDCP™), LOW NOISE, LOW POWER, 32 TAPS, PUSHBUTTON CONTROLLED POTENTIOMETER

Part	Resistance - Wiper (Typ)	Tolerance	Mounting Type	Temperature Coefficient (Typ)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Interface	Taper	Configuration	Memory Type	Resistance	Package Length	Package Name	Package Width	Number of Circuits	Number of Taps	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case
Renesas Electronics Corporation ISL22511WFB8Z-TK	130 Ohms	20 %	Surface Mount	80 ppm/°C	5.5 V	2.7 V	Pushbutton	Linear	Potentiometer	Non-Volatile	10 kOhm	0.154 in	8-SOIC	3.9 mm	1	32	125 °C	-40 °C
Renesas Electronics Corporation ISL22511WFB8Z	130 Ohms	20 %	Surface Mount	80 ppm/°C	5.5 V	2.7 V	Pushbutton	Linear	Potentiometer	Non-Volatile	10 kOhm	0.154 in	8-SOIC	3.9 mm	1	32	125 °C	-40 °C
Renesas Electronics Corporation ISL22511WFRU10Z-TK	130 Ohms	20 %	Surface Mount	80 ppm/°C	5.5 V	2.7 V	Pushbutton	Linear	Potentiometer	Non-Volatile	10 kOhm	2.1 mm	10-UTQFN	1.6 mm	1	32	125 °C	-40 °C	10-UFQFN
