647502 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN SHROUDED HEADER HDR 5 POS 2.54MM SOLDER ST SMD REEL

Part	Current Rating	Pitch - Mating	Contact Material	Contact Finish - Mating	Termination	Contact Finish - Post	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Style	Contact Type	Number of Positions	Connector Type	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Mounting Type	Shrouding	Insulation Material	Number of Rows	Voltage Rating	Insulation Color	Contact Length - Mating	Contact Shape	Applications
TE Connectivity AMP Connectors 3-647502-5	Varies by Wire Gauge	0.1 in	Copper Alloy	Tin	Solder	Tin	-55 °C	105 °C	0.347 in	Board Cable/Wire	Male Pin	5	Header	UL94 V-0	All	Friction Lock	Surface Mount	Unshrouded	Nylon 4/6 Polyamide (PA46)	1	250 V	Black	0.29 in	Square	General Purpose

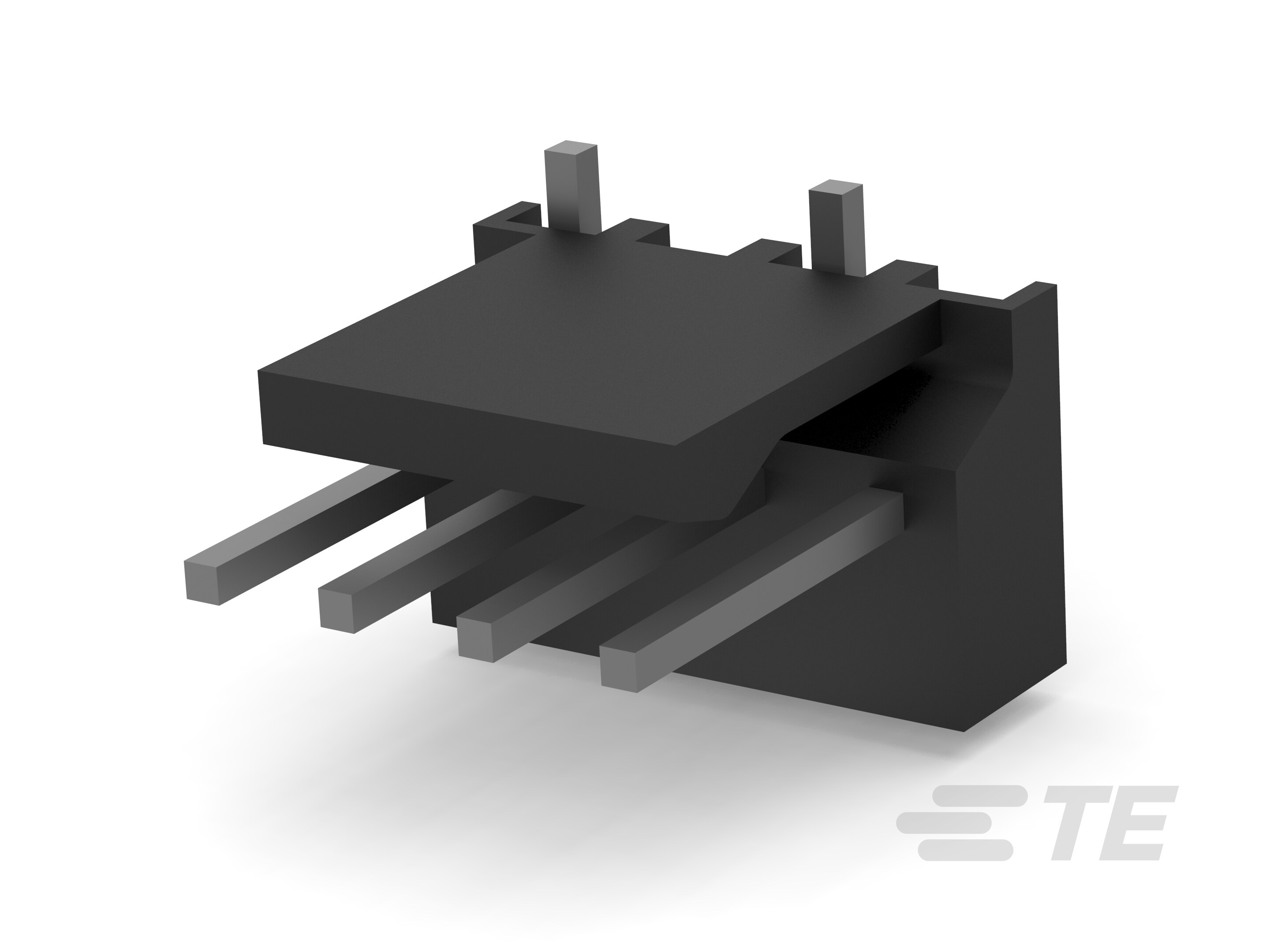

TE Connectivity AMP Connectors 3-647502-4	Varies by Wire Gauge	0.1 in	Copper Alloy	Tin	Solder	Tin	-55 °C	105 °C	0.347 in	Board Cable/Wire	Male Pin	4	Header	UL94 V-0	All	Friction Lock	Surface Mount	Unshrouded	Nylon 4/6 Polyamide (PA46)	1	250 V	Black	0.29 in	Square	General Purpose
TE Connectivity AMP Connectors 3-647502-6	Varies by Wire Gauge	0.1 in	Copper Alloy	Tin	Solder	Tin	-55 °C	105 °C	0.347 in	Board Cable/Wire	Male Pin	6	Header	UL94 V-0	All	Friction Lock	Surface Mount	Unshrouded	Nylon 4/6 Polyamide (PA46)	1	250 V	Black	0.29 in	Square	General Purpose
TE Connectivity AMP Connectors 3-647502-3	Varies by Wire Gauge	0.1 in	Copper Alloy	Tin	Solder	Tin	-55 °C	105 °C	0.347 in	Board Cable/Wire	Male Pin	3	Header	UL94 V-0	All	Friction Lock	Surface Mount	Unshrouded	Nylon 4/6 Polyamide (PA46)	1	250 V	Black	0.29 in	Square	General Purpose
TE Connectivity AMP Connectors 3-647502-2	Varies by Wire Gauge	0.1 in	Copper Alloy	Tin	Solder	Tin	-55 °C	105 °C	0.347 in	Board Cable/Wire	Male Pin	2	Header	UL94 V-0	All	Friction Lock	Surface Mount	Unshrouded	Nylon 4/6 Polyamide (PA46)	1	250 V	Black	0.29 in	Square	General Purpose
