DAC1627D1G25HN Series

Dual 16-Bit DAC, up to 1.25Gsps; 2x, 4x and 8x Interpolating

Manufacturer: Renesas Electronics Corporation

Catalog

Dual 16-Bit DAC, up to 1.25Gsps; 2x, 4x and 8x Interpolating

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Differential Output	Settling Time (Typical)	Reference Type	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Min)	Data Interface	Package Width	Package Name	Package Length	Mounting Type	Output Type	Architecture	Number of Bits	Package / Case	Number of D/A Converters
Renesas Electronics Corporation DAC1627D1G25HN-C1	-40 °C	85 °C	1.7 V	1.9 V	Yes	20 ns	External Internal	1.9 V	3.45 V	3.15 V	1.7 V	LVDS - Parallel	10 mm	72-VFQFPN	10 mm	Surface Mount	Current - Unbuffered	Binary-Weighted DAC String DAC	16 bits	72-VFQFN Exposed Pad	2 count

Catalog

Dual 16-Bit DAC, up to 1.25Gsps; 2x, 4x and 8x Interpolating

Description

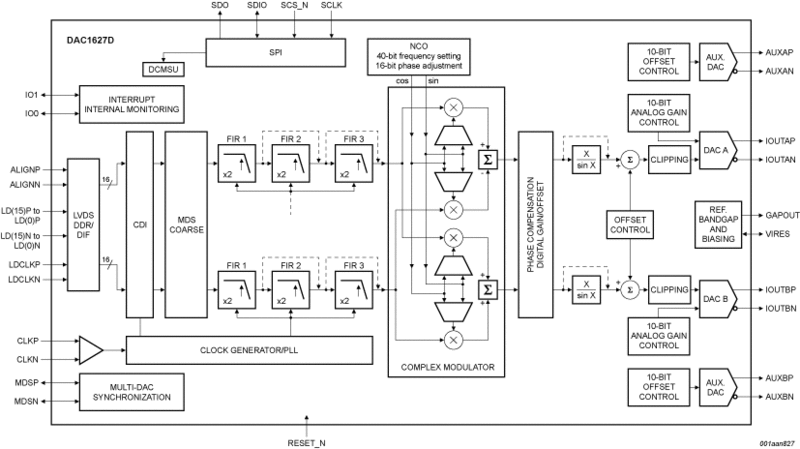

The DAC1627D1G25 is a 16-bit dual-channel digital-to-analog converter (DAC) with selectable 2x, 4x, and 8x interpolation filters optimized for multi-carrier broadband wireless transmitters at sample rates up to 1.25Gsps. Supplied from 3.3V and 1.8V power sources, it integrates a differential scalable output current up to 34mA. The mixer frequency is set by a high-resolution 40-bit numerically controlled oscillator (NCO). High-resolution internal gain, phase, and offset control provide outstanding image and LO rejection at the system analog modulator output. An inverse (sin x)/x function ensures controlled flatness at the DAC output. The LVDS DDR receiver interface allows a high data bandwidth (312.5MS/sec) at the input.
