5208008 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

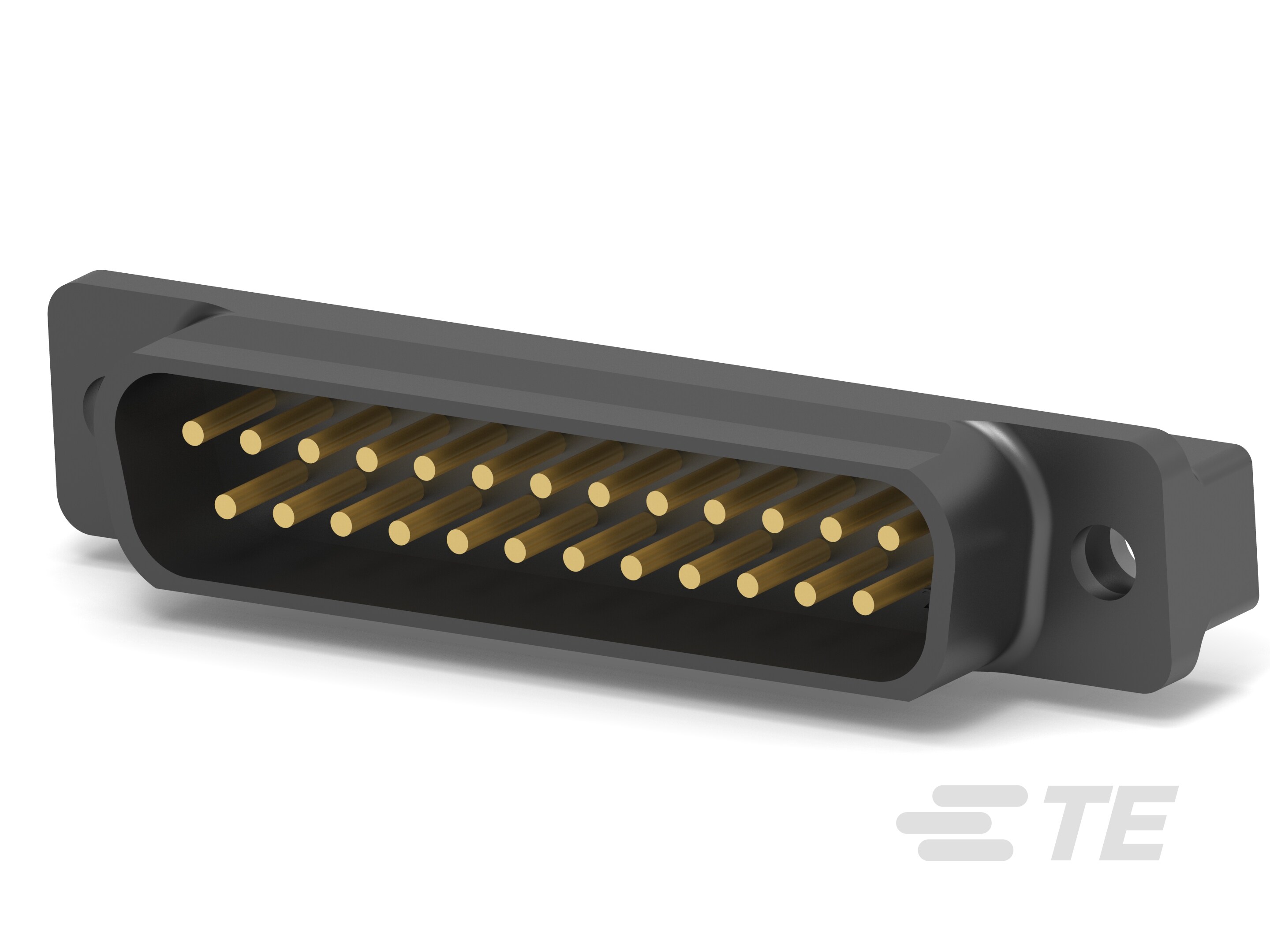

D SUB CONNECTOR, DB25, 25 CONTACTS, PLUG, SOLDER, DB, AMPLIMITE HD-20 SERIES, PLASTIC BODY
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Connector Type | Contact Finish | Number of Positions | Contact Type | Flange Feature | Material Flammability Rating | Mounting Type | Shell Size | Connector Layout | Current Rating | Termination | Connector Style | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Contact Material | Color | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | 0 | Flash | Flash | Male Pins Plug | Gold | 25 | Signal | Housing Shell (Unthreaded) | UL94 V-0 | Through Hole | 3 | B DB | 6 A | Solder | D-Sub | -55 °C | 105 °C | 125 V | Brass | Black | Polyester |
