2842282 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

48P,2MM,SHRD HDR,DRVT,0.1AU,TB

Part	Contact Length - Mating	Contact Shape	Contact Material	Material Flammability Rating	Termination	Number of Positions Loaded	Pitch - Mating	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Post	Contact Finish - Mating	Current Rating	Row Spacing - Mating	Fastening Type	Mounting Type	Insulation Height	Shrouding	Contact Finish Thickness - Mating	Connector Type	Style	Contact Type	Number of Rows	Number of Positions	Insulation Color	Contact Finish - Post	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 4-2842282-8	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	48	Black	Tin	125 V	DC	78.7 µin
TE Connectivity AMP Connectors 1-2842282-0	0.145 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	10	Black	Tin	125 V	DC	78.7 µin	General Purpose Industrial
TE Connectivity AMP Connectors 2842282-8	0.145 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	8	Black	Tin	125 V	DC	78.7 µin	General Purpose Industrial
TE Connectivity AMP Connectors 1-2842282-4	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	14	Black	Tin	125 V	DC	78.7 µin
TE Connectivity AMP Connectors 4-2842282-2	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	42	Black	Tin	125 V	DC	78.7 µin
TE Connectivity AMP Connectors 2-2842282-4	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	24 pos	Black	Tin	125 V	DC	78.7 µin
TE Connectivity AMP Connectors 4-2842282-6	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	46	Black	Tin	125 V	DC	78.7 µin

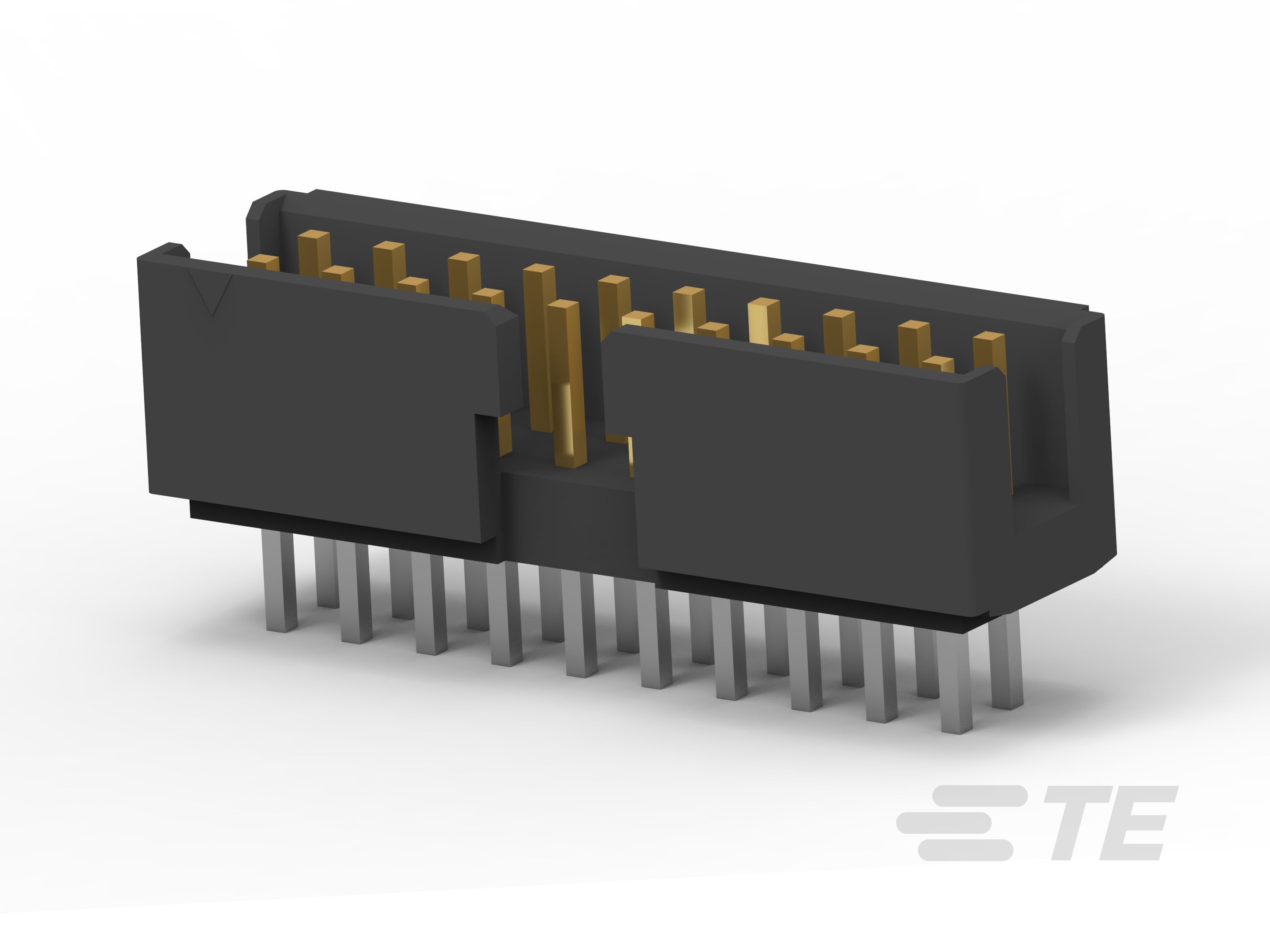

TE Connectivity AMP Connectors 2-2842282-6	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	26	Black	Tin	125 V	DC	78.7 µin
TE Connectivity AMP Connectors 3-2842282-2	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	32	Black	Tin	125 V	DC	78.7 µin
TE Connectivity AMP Connectors 2-2842282-0	0.146 in	Square	Copper Alloy	UL94 V-0	Solder	All	0.079 in	Thermoplastic	125 °C	-40 °C	0.11 in	Gold	2 A	0.079 in	Detent Lock	Through Hole	0.238 in	Shrouded - 2 Wall	3.94 µin	Header	Board Board or Cable	Male Pin	2	20	Black	Tin	125 V	DC	78.7 µin
