644759 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 4POS 3.96MM

Part	Contact Material	Insulation Material	Fastening Type	Number of Positions	Contact Finish - Post	Contact Length - Post	Insulation Height	Contact Finish Thickness - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Overall Contact Length	Current Rating	Insulation Color	Termination	Material Flammability Rating	Voltage Rating	Style	Number of Rows	Pitch - Mating	Mounting Type	Connector Type	Contact Type	Contact Shape	Contact Finish - Mating	Contact Length - Mating	Number of Positions Loaded	Shrouding	Applications
TE Connectivity AMP Connectors 3-644759-4	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	4	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial

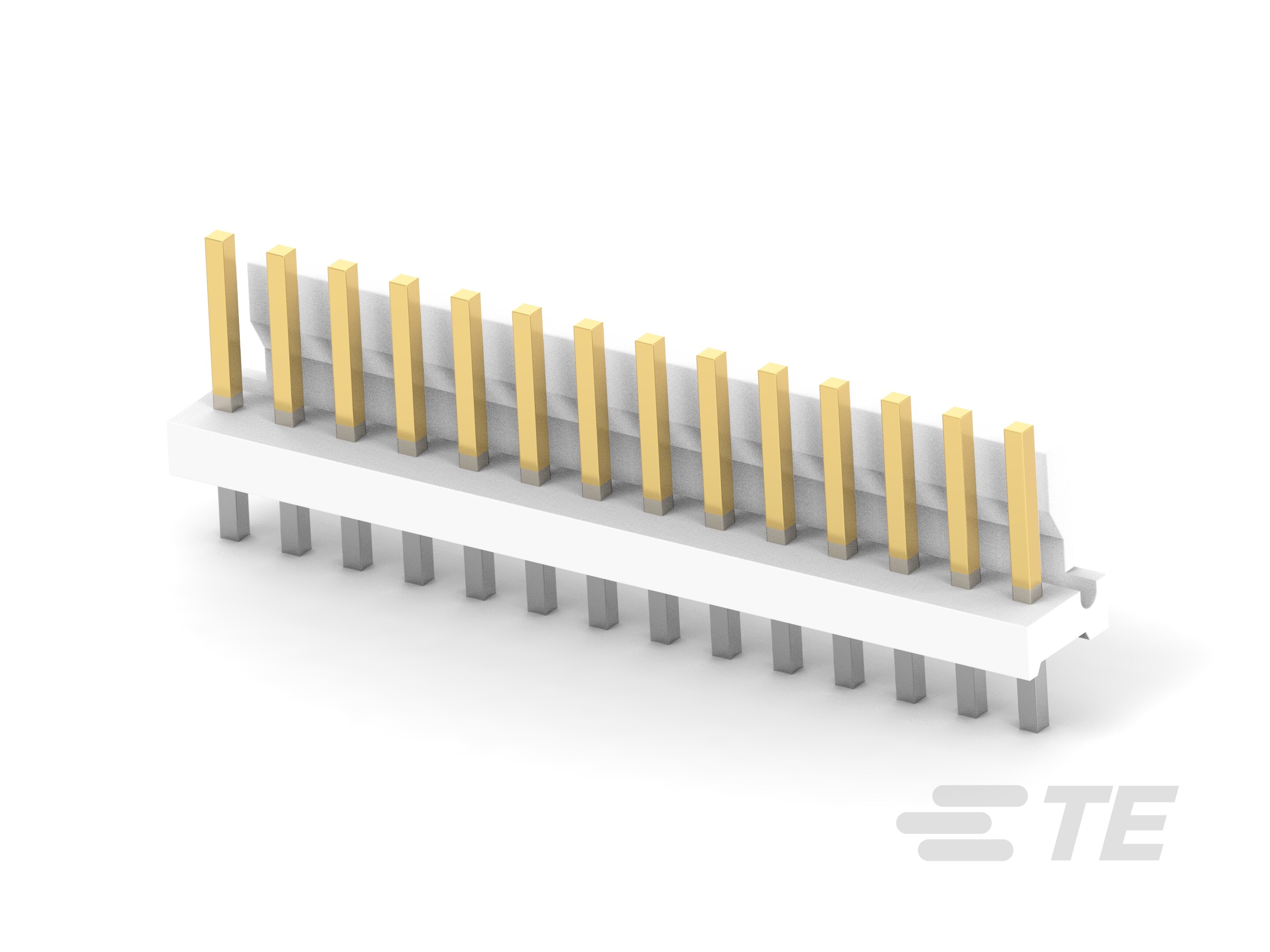

TE Connectivity AMP Connectors 4-644759-4	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	14	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 644759-3	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	3	Tin-Lead	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 644759-5	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	5	Tin-Lead	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 3-644759-7	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	7	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 4-644759-3	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	13	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 4-644759-1	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	11	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 4-644759-2	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	12	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
TE Connectivity AMP Connectors 644759-6	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	6	Tin-Lead	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial

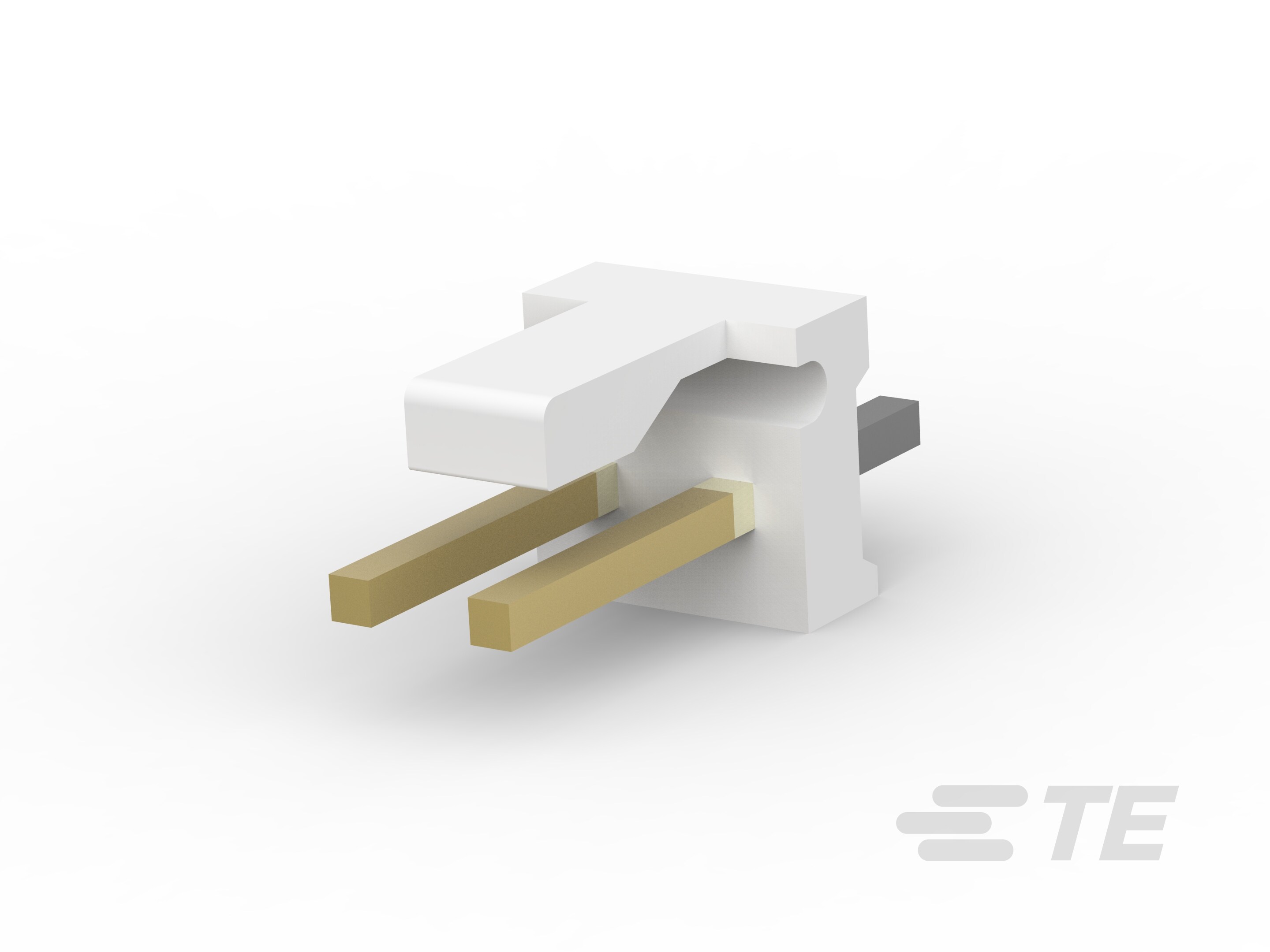

TE Connectivity AMP Connectors 3-644759-2	Copper Alloy	Glass Filled Thermoplastic	Friction Lock	2	Tin	0.175 in	0.425 in	30 µin	-55 °C	105 °C	0.7 in	Varies by Wire Gauge	Natural	Solder	UL94 V-0	600 V	Board Cable/Wire	1	0.156 in	Through Hole	Header	Male Pin	Square	Gold	0.4 in	All	Shrouded - 1 Wall	General Purpose Industrial
