DCNLM100NB24 Series

DCNLM 100A 48V NP 24Vcoil

Catalog

DCNLM 100A 48V NP 24Vcoil

Part	Must Operate Voltage	Must Release Voltage	Switching Voltage DC (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Mounting Type	Contact Rating (Current)	Form A Count	Contact Form	Coil Voltage
LITTELFUSE DCNLM100NB24	16.8 VDC	2 VDC	60 VDC	-40 °C	70 °C	Stud	Chassis Mount	100 A	1	SPST-NO	24 VDC

Catalog

DCNLM 100A 48V NP 24Vcoil

Description

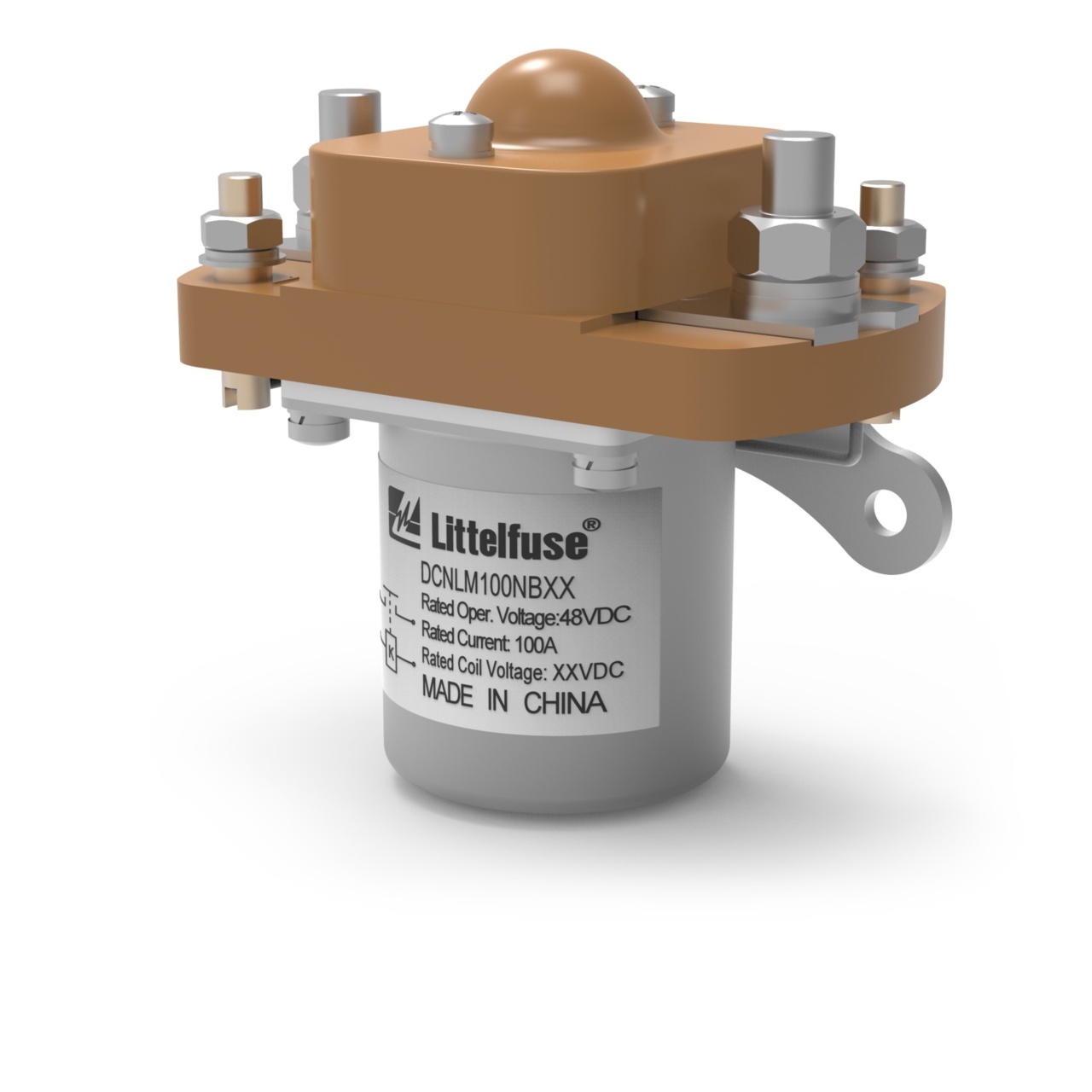

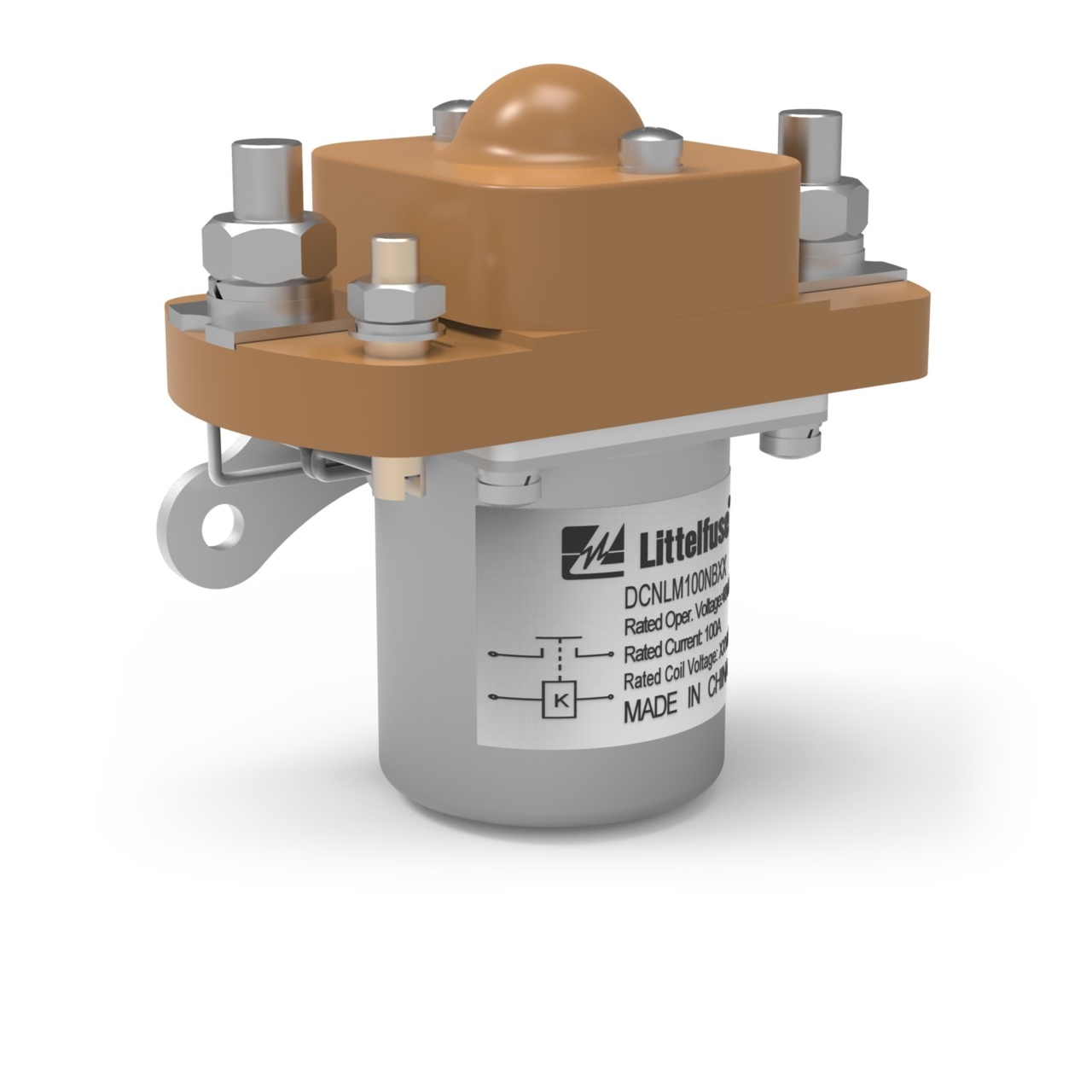

The DCNLM Series 60V High-Current DC Contactor Relay features 100A contact switching capability with a 24V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS). This configuration of the DCNLM normally open, high-current DC contactor (DCNLM100NB24) features 60V non-polarized main contacts and a single-coil design.
