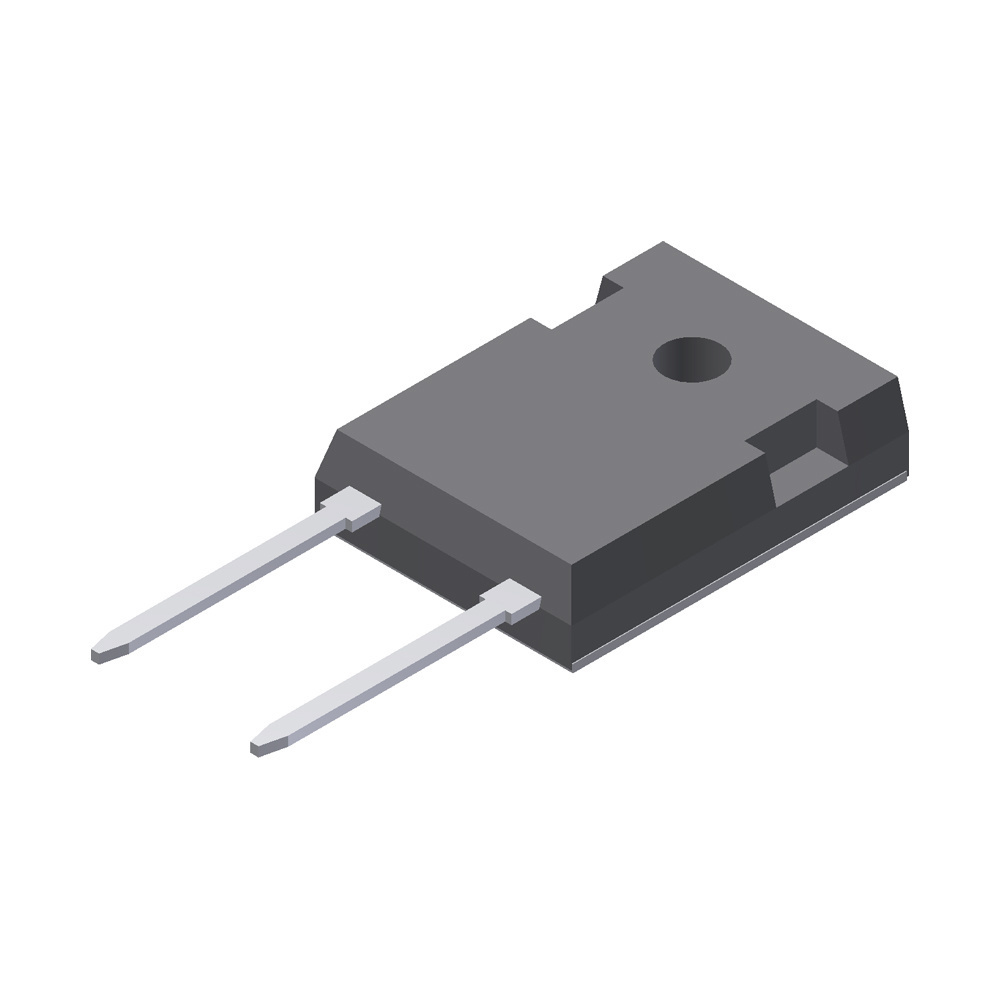

Power Diode Discretes-FRED TO-247AD
Description
AI
The discrete Semifast Diode series offers short recovery times and soft recovery behaviour for breakdown voltages from 1400V up to 1800V.
Beta
⌘K
Power Diode Discretes-FRED TO-247AD
Power Diode Discretes-FRED TO-247AD
| Part | Current - Average Rectified (Io) | Reverse Recovery Time (trr) | Voltage - DC Reverse (Vr) (Max) | Operating Temperature - Junction (Min) | Operating Temperature - Junction (Max) | Voltage - Forward (Vf) (Max) | Mounting Type | Package / Case | Current - Reverse Leakage | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Technology | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 63 A | 300 ns | 1400 V | -40 °C | 150 °C | 4.1 V | Through Hole | TO-247-2 | 2 mA | 500 ns | 200 mA | Standard | TO-247AD |
 LITTELFUSE | 63 A | 300 ns | 1600 V | -40 °C | 150 °C | 4.1 V | Through Hole | TO-247-2 | 2 mA | 500 ns | 200 mA | Standard | TO-247AD |
LITTELFUSE | 63 A | 300 ns | 1800 V | -40 °C | 150 °C | 4.1 V | Through Hole | TO-247-2 | 2 mA | 500 ns | 200 mA | Standard | TO-247AD |
