29676 Series
Manufacturer: Phoenix Contact
Beta
⌘K

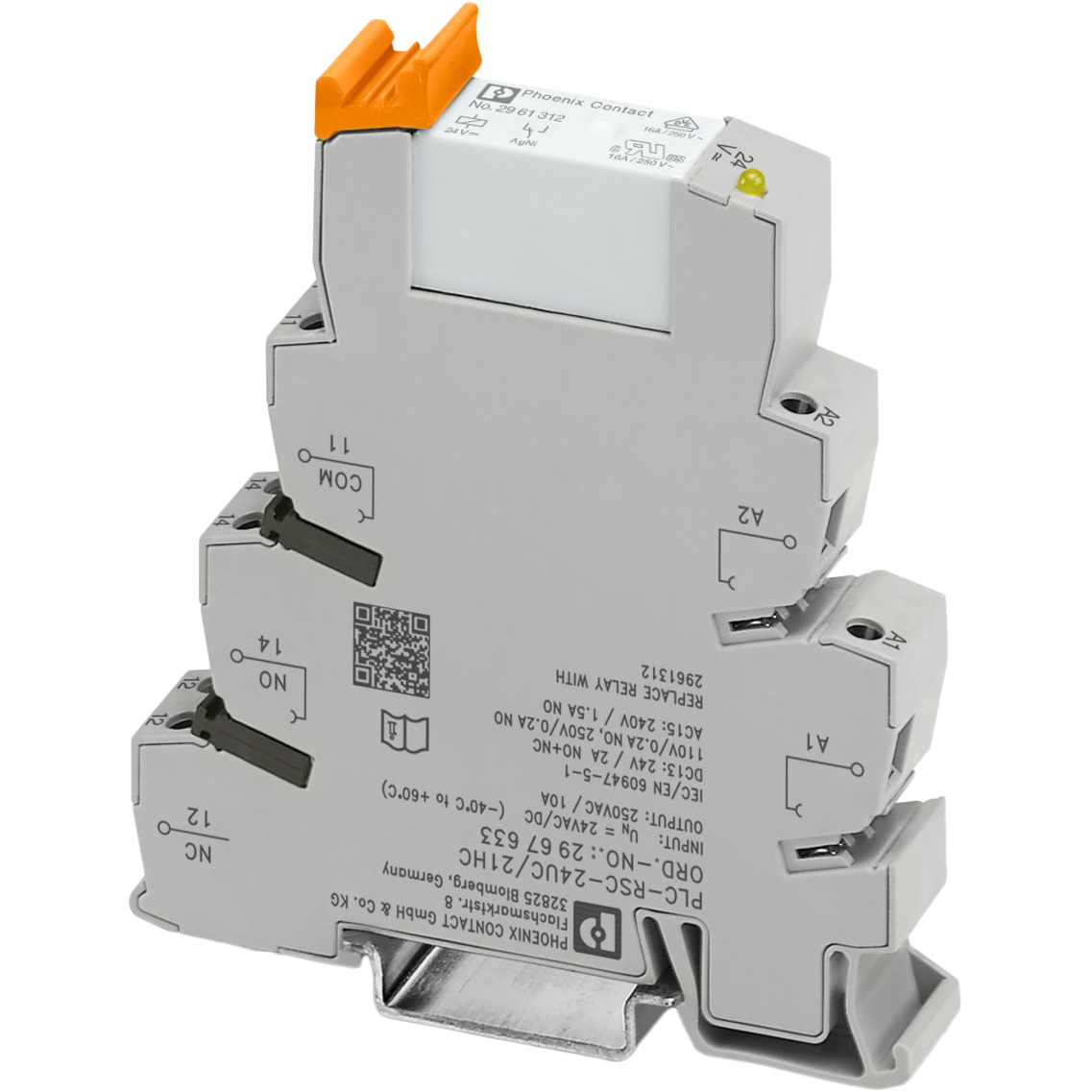

RELAY MODULE SCREW CONNECTION TERMINAL SPDT
| Part | Contact Form | Mounting Type | Coil Type | Features | Coil Current | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Contact Material | Release Time | Coil Voltage | Coil Voltage (Type) | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Contact Rating (Current) | Operate Time | Relay Type | Approval Agency | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1 C Form SPDT | DIN Rail | Non Latching | Lighted Indicator Socket Included | 4.5 mA | 250 VAC | 250 VDC | Silver Nickel (AgNi) | 10 ms | 230 VDC | AC DC | -40 °C | 55 °C | Screw Terminal | 10 A | 7 ms | General Purpose | CE UKCA | 51.1 kOhms |
 Phoenix Contact | 1 C Form SPDT | DIN Rail | Non Latching | Lighted Indicator Socket Included | 4.5 mA | 250 VAC | 250 VDC | Silver Nickel (AgNi) | 10 ms | 120 V | AC DC | -40 °C | 60 °C | Screw Terminal | 10 A | 7 ms | General Purpose | CE UKCA | 26.66 kOhms |
 Phoenix Contact | 1 C Form SPDT | DIN Rail | Non Latching | Diode Lighted Indicator Socket Included | 0.02 A | 250 VAC | 250 VDC | Silver Nickel (AgNi) | 10 ms | 48 V | -40 °C | 60 °C | Screw Terminal | 10 A | 8 ms | General Purpose | CE UKCA | 2.4 kOhms | |
 Phoenix Contact | 1 C Form SPDT | DIN Rail | Non Latching | Diode Lighted Indicator Socket Included | 10 mA | 250 VAC | 250 VDC | Silver Nickel (AgNi) | 10 ms | 60 VDC | -40 °C | 60 °C | Screw Terminal | 10 A | 8 ms | General Purpose | CE UKCA | 6 kOhms | |
 Phoenix Contact | 1 C Form SPDT | DIN Rail | Non Latching | Lighted Indicator Socket Included | 17.5 mA | 250 VAC | 250 VDC | Silver Nickel (AgNi) | 10 ms | 24 VDC | AC DC | -40 °C | 60 °C | Screw Terminal | 10 A | 8 ms | General Purpose | CE UKCA | 1371 Ohms |
