208242 Series

High-Speed FAKRA Mini (HFM) Dual Header, 1x2, Right-Angle, Through Hole, Key K, Curry, 50 Ohms

Manufacturer: Molex

Catalog

High-Speed FAKRA Mini (HFM) Dual Header, 1x2, Right-Angle, Through Hole, Key K, Curry, 50 Ohms

Part	Impedance	Shield Termination	Frequency - Max	Connector Type	Fastening Type	Number of Ports	Connector Style	Contact Termination	Center Contact Material	Housing Color	Features	Mounting Type	Features - Code
Molex 2082420208	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Beige	Code J	Right Angle Through Hole
Molex 2082420201	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	2	Fakra HFM® Twinaxial	Solder	Bronze	White	Code B	Right Angle Through Hole
Molex 2082420209	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Curry	Code K	Right Angle Through Hole
Molex 2082420213	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Green	Code N	Right Angle Through Hole
Molex 2082420205	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Brown	Code F	Right Angle Through Hole
Molex 2082420203	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Claret Violet	Code D	Right Angle Through Hole
Molex 2082420204	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Green	Code E	Right Angle Through Hole	E

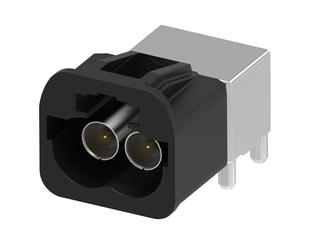

Molex 2082420200	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	2	Fakra HFM® Twinaxial	Solder	Bronze	Black	Code A	Right Angle Through Hole	A

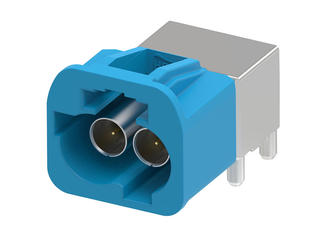

Molex 2082420202	50 Ohm	Solder	9 GHz	Male Pin Plug	Latch Lock	1	Fakra HFM® Twinaxial	Solder	Bronze	Blue	Code C	Right Angle Through Hole
Molex 2082420104

High-Speed FAKRA Mini (HFM) Dual Header, 1x2, Right-Angle, Through Hole, Key K, Curry, 50 Ohms
