50863 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

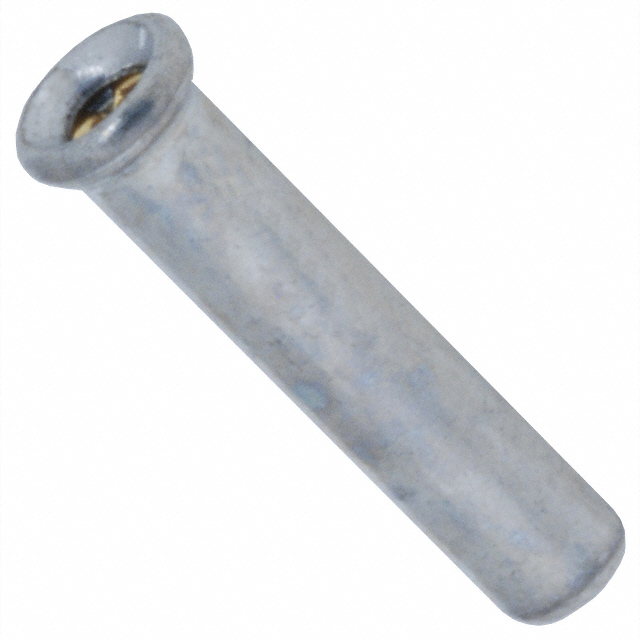

CONN PIN RCPT .014-.026 SOLDER
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Features | Accepts Pin Diameter (Max) | Accepts Pin Diameter (Min) | Length - Overall | Contact Material | Contact Finish | Mounting Hole Diameter | Socket Depth | Tail Type | Termination | Flange Diameter | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 °C | 126 °C | Open Bottom | 0.026 in | 0.014 in | 0.26 in | Beryllium Copper | Tin | 0.052 in | 0.247 in | No Tail | Solder | 0.07 in | 100 µin |
 TE Connectivity AMP Connectors | -65 °C | 126 °C | Closed Bottom | 0.026 in | 0.014 in | 0.26 in | Beryllium Copper | Gold | 0.052 in | 0.247 in | No Tail | Solder | 0.07 in | 30 µin |
