LS-1506 Series

Manufacturer: 3M (TC)

Catalog

ISOLOSS LS-1506/PSA GASKET FOAM

Part	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Density	Color	Thickness	Thickness	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension

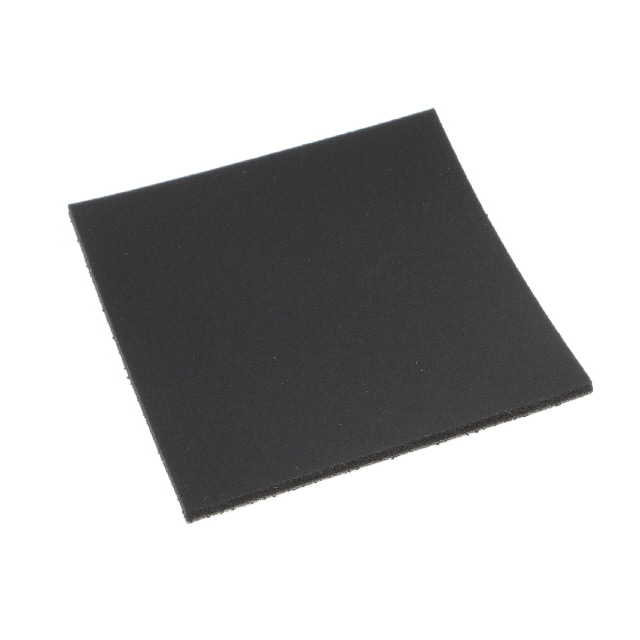

3M (TC) LS-1506/PSA-2"X2"-50PK	UL94 HBF	2 in	50.8 mm	50.8 mm	2 in	Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in
3M (TC) LS-1506/PSA-12-12(6)	UL94 HBF	12 "	304.8 mm	304.8 mm	12 in	Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in

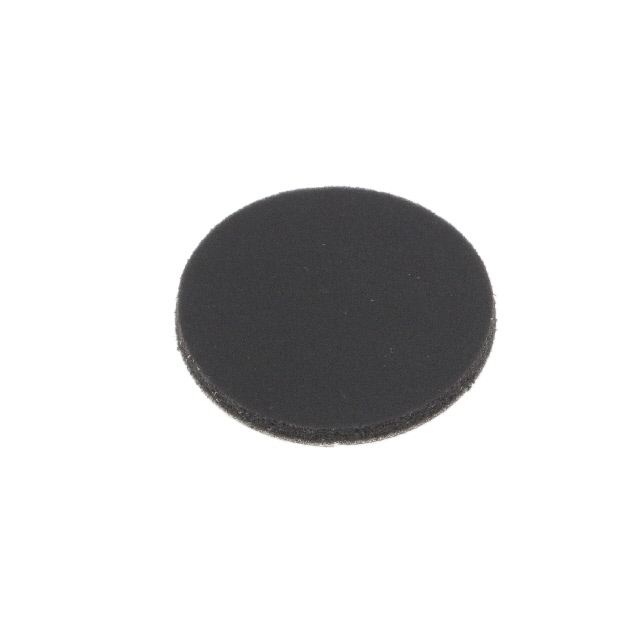

3M (TC) LS-1506/PSA-1"CIRCLE-50PK	UL94 HBF					Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in	1 in	25.4 mm
3M (TC) LS-1506/PSA-0.75"X180"-1RL	UL94 HBF	180 in	19.1 mm	4572 mm	0.75 in	Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in
3M (TC) LS-1506/PSASQ-1(50)	UL94 HBF					Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in
3M (TC) LS-1506/PSA-0.5-180	UL94 HBF	180 in	12.7 mm	4572 mm	0.5 in	Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in
3M (TC) LS-1506/PSA-2"CIRCLE-50PK	UL94 HBF					Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in	2 in	50.8 mm
3M (TC) LS-1506/PSA-1"X180"-1RL	UL94 HBF	180 in			1 in	Polyurethane	15 lb/ft³	Black	1.52 mm	0.06 in			25.4 mm 4572 mm
