2406845 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

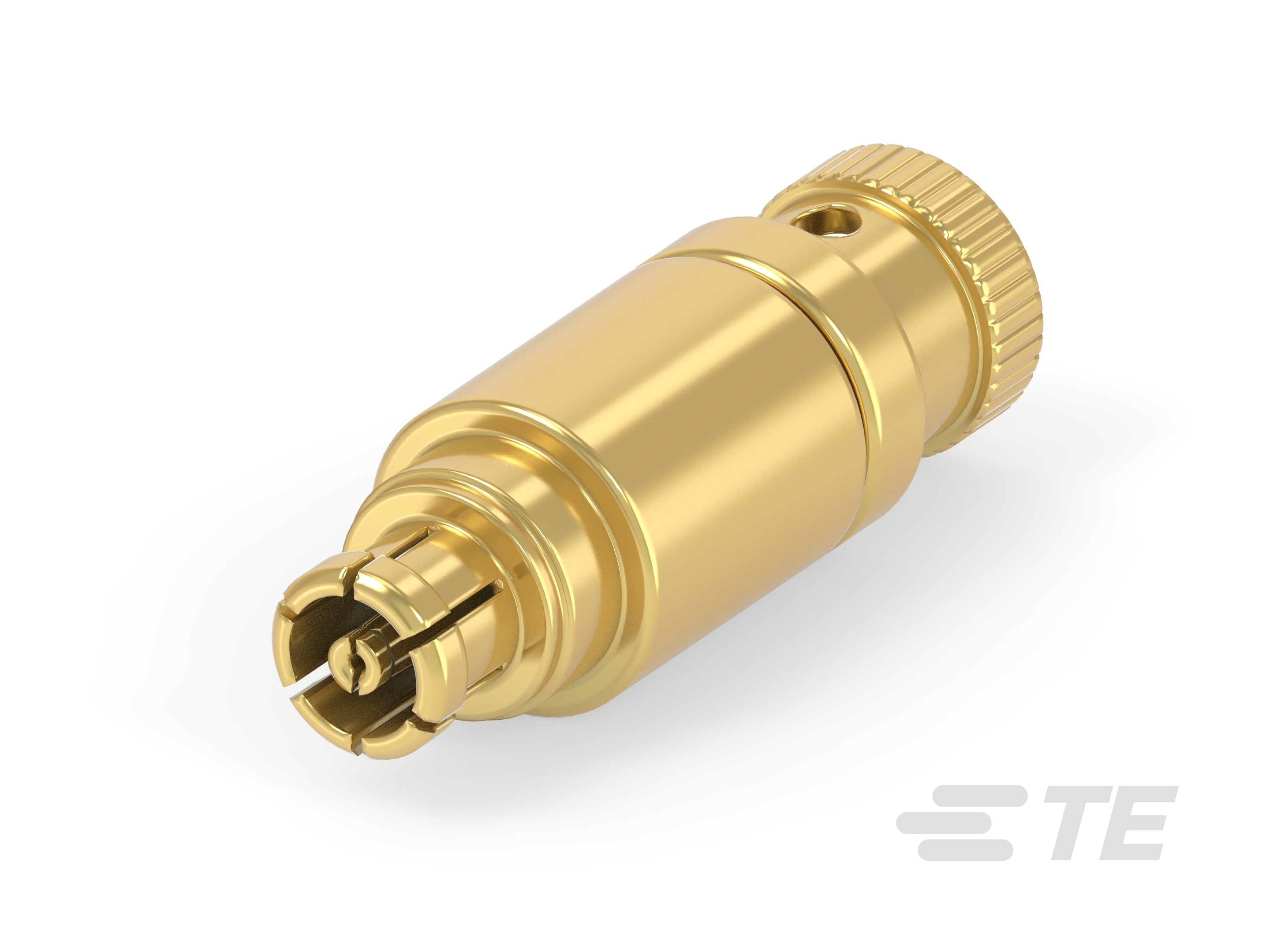

RF CONNECTORS / COAXIAL CONNECTORS SSMP FEMALE S/T FOR TFLEX-405 CABLE
| Part | Mounting Type | Connector Type | Impedance | Contact Termination | Center Contact Material | Frequency - Max | Housing Color | Number of Ports | Cable Group Diameter (Semi Rigid) | Cable Group | Connector Style | Shield Termination | Fastening Type | Body Material | Voltage Rating | Center Contact Plating | Dielectric Material | Mating Cycles | Operating Temperature (Max) | Operating Temperature (Min) | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Female Socket Recepture | 50 Ohm | Solder | Beryllium Copper | 40 Gbps | Gold | 1 | 0.086 in | RG-405 | SMPM | Solder | Snap-On | Beryllium Copper | 175 V | Gold | Polyetheretherketone (PEEK) | 500 cycles | 125 °C | -40 °C | Gold |
