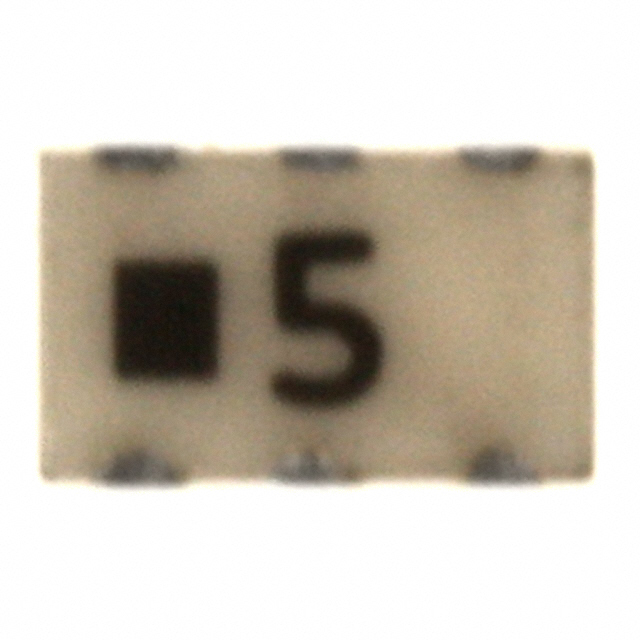

EHF-FD Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
BALUN 1.2GHZ-2.2GHZ 50/50 1206
| Part | Frequency Range (Max) | Frequency Range (Min) | Phase Difference | Phase Difference Tolerance | Package / Case | Impedance - Unbalanced | Impedance - Balanced | Insertion Loss (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 2.2 GHz | 1.2 GHz | 180 ° | 15 ° | 1206 (3216 Metric) | 50 Ohm | 50 Ohm | 1 dB | Surface Mount |
 Panasonic Electronic Components | 4 GHz | 3.4 GHz | 180 ° | 20 ° | 0805 (2012 Metric) | 50 Ohm | 100 Ohm | 1 dB | Surface Mount |
Panasonic Electronic Components | 1.45 GHz | 1.1 GHz | 180 ° | 15 ° | 1206 (3216 Metric) | 50 Ohm | 200 Ohm | 1 dB | Surface Mount |
Panasonic Electronic Components | 1.95 GHz | 1.7 GHz | 180 ° | 15 ° | 0603 (1608 Metric) | 50 Ohm | 200 Ohm | 1 dB | Surface Mount |
Panasonic Electronic Components | 1.3 GHz | 700 MHz | 180 ° | 15 ° | 1206 (3216 Metric) | 50 Ohm | 50 Ohm | 1 dB | Surface Mount |
