747905 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

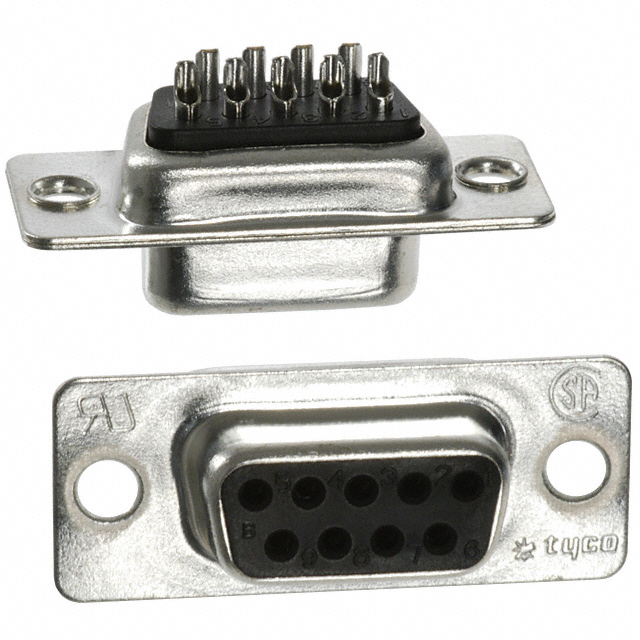

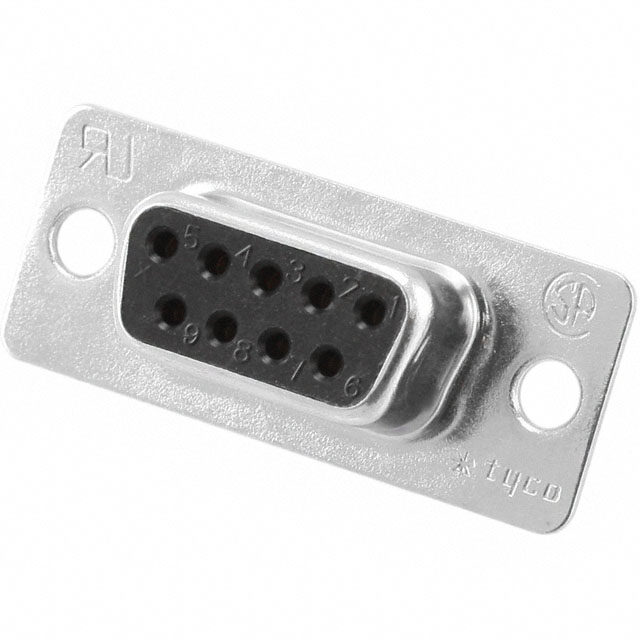

CONN D-SUB RCPT 9POS SOLDER CUP
| Part | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Style | Flange Feature | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Material Flammability Rating | Number of Rows | Number of Positions | Contact Finish | Contact Material | Dielectric Material | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Color | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 250 VDC | 0.76 Ám | 30 Áin | Signal | D-Sub | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 105 ░C | -55 °C | Receptacle Female Sockets | UL94 V-0 | 2 | 9 | Gold | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | DE E | 1 | Black | ||
 TE Connectivity Raychem Cable Protection | 250 VDC | Signal | D-Sub | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 105 ░C | -55 °C | Receptacle Female Sockets | UL94 V-0 | 2 | 9 | Gold | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | DE E | 1 | Black | Blue Zinc Plated Steel | Flash | ||
 TE Connectivity Raychem Cable Protection | 250 VDC | Signal | D-Sub | Cable Side | Free Hanging (In-Line) | 105 ░C | -55 °C | Receptacle Female Sockets | UL94 V-0 | 2 | 9 | Gold | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | DE E | 1 | Black | Flash |
