MCP4728 Series

12-Bit Quad Output DAC w/EEPROM and I2C™

Catalog

12-Bit Quad Output DAC w/EEPROM and I2C™

Part	Package Name	Differential Output	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Settling Time (Typical)	Number of D/A Converters	Package Length	Package Width	Output Type	Reference Type	Mounting Type	Data Interface	Number of Bits	DNL (LSB) Tolerance	INL (LSB) Tolerance	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Architecture	Grade	Qualification	Supplied Contents	Settling Time	DAC Type	Utilized IC / Part	Contents	Number of DAC's
Microchip Technology MCP4728A1T-E/UN	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC
Microchip Technology MCP4728A0T-E/UN	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC
Microchip Technology MCP4728A0-E/UN	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC
Microchip Technology MCP4728-E/UN	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC
Microchip Technology MCP4728A1-E/UN	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC
Microchip Technology MCP4728A0T-E/UNVAO	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC	Automotive	AEC-Q100
Microchip Technology MCP4728A4T-E/UNVAO	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC	Automotive	AEC-Q100
Microchip Technology MCP4728T-E/UN	10-MSOP 10-TFSOP	No	2.7 V	5.5 V	125 °C	-40 °C	6 µs	4 count	0.118 in	3 mm	Voltage - Buffered	Internal Supply	Surface Mount	I2C	12 bits	0.2 LSB	2 LSB	2.7 V	5.5 V	String DAC

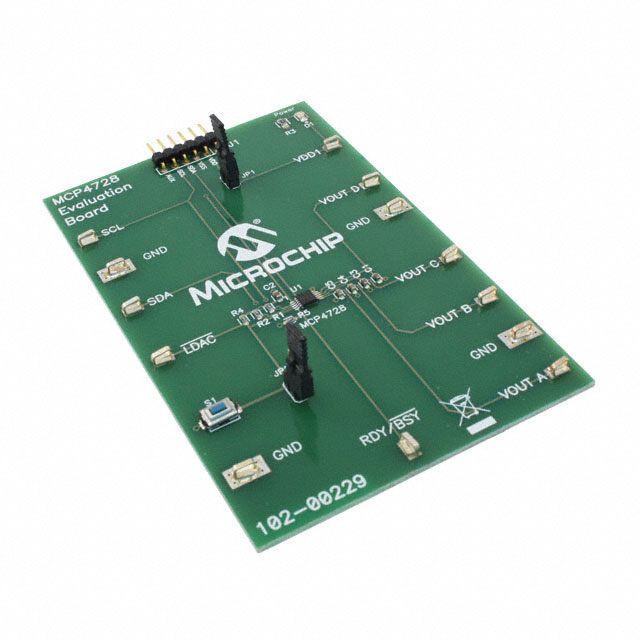

Microchip Technology MCP4728EV														I2C	12 bits								Board(s)	6 µs	Voltage	MCP4728	Board	4

Catalog

12-Bit Quad Output DAC w/EEPROM and I2C™

Description

MCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface. The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up.
