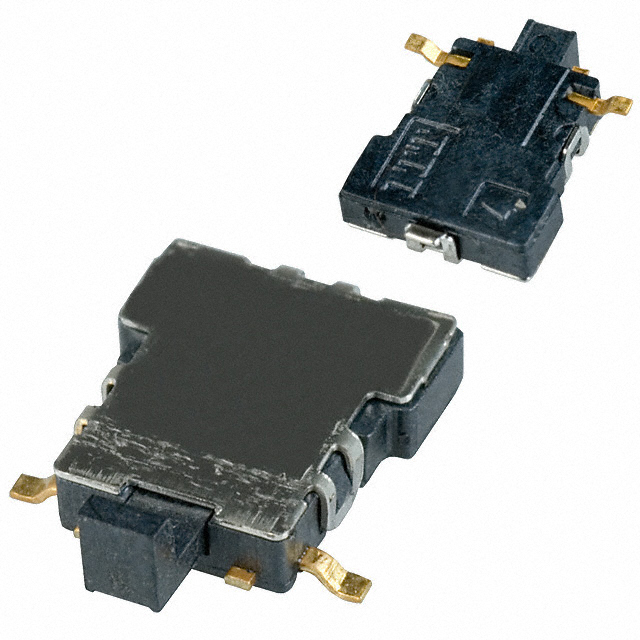

KSM113 Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH TACTILE SPST-NC 0.05A 24V
| Part | Mechanical Life (Cycles) | Switch Travel | Illumination | Operating Force | Circuit | Switch Function | Actuator Orientation | Contact Rating (Current) | Termination Style | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Outline Length | Outline Width | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 50000 Cycles | 0.3 mm | Non-Illuminated | 90 gf | SPST-NC | On-Mom | Side Actuated | 0.05 A | Gull Wing | Right Angle Surface Mount | -40 °C | 85 °C | 5.8 mm | 6.95 mm | Standard |
 LITTELFUSE | 50000 Cycles | 0.35 mm | Non-Illuminated | 110 gf | SPST-NC | On-Mom | Side Actuated | 0.05 A | Gull Wing | Right Angle Surface Mount | -40 °C | 85 °C | 5.8 mm | 6.95 mm | Standard |
