PIC16F1519 Series

Catalog

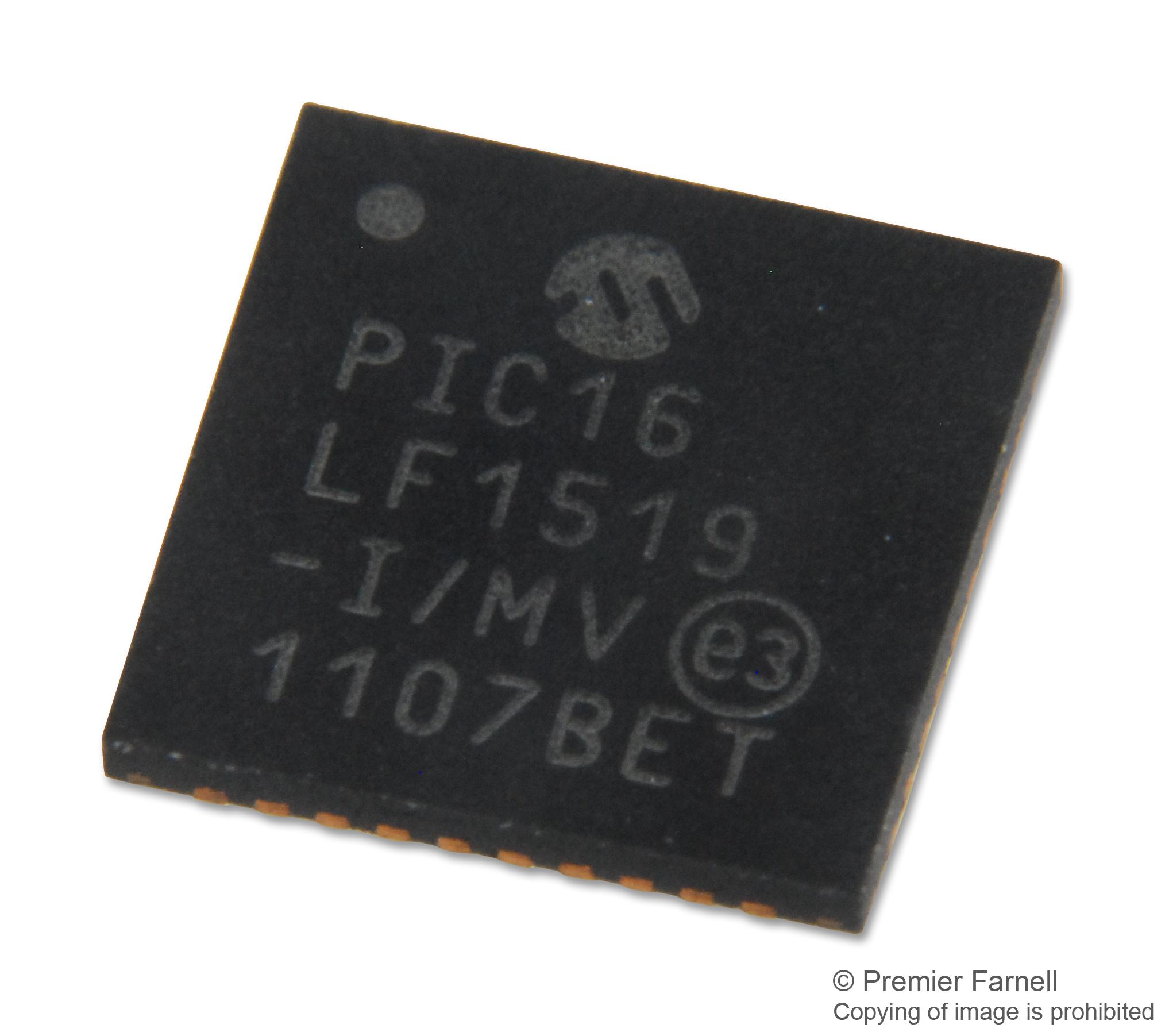

MCU 8-BIT PIC16 PIC RISC 28KB FLASH 3.3V 40-PIN UQFN EP T/R

Part	Oscillator Type	Package / Case	RAM Size Depth	RAM Size Width	Program Memory Type	Mounting Type	Core Size (Bit Width)	Peripherals	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Speed	A/D Channels	A/D Resolution (bits)	Connectivity	Core Processor	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Program Memory Size	Program Memory Depth	Program Memory Width	Package Width	Package Name	Package Length
Microchip Technology PIC16LF1519T-I/MV	Internal	40-UFQFN Exposed Pad	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	3.6 V	1.8 V	28 KB	16 K	14	5 mm	40-UQFN	5 mm
Microchip Technology PIC16F1519T-I/MV	Internal	40-UFQFN Exposed Pad	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	5.5 V	2.3 V	28 KB	16 K	14	5 mm	40-UQFN	5 mm
Microchip Technology PIC16F1519-I/MV	Internal	40-UFQFN Exposed Pad	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	5.5 V	2.3 V	28 KB	16 K	14	5 mm	40-UQFN	5 mm
Microchip Technology PIC16LF1519-I/P	Internal		1 K	8 bit	FLASH	Through Hole	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	3.6 V	1.8 V	28 KB	16 K	14	15.24 mm	40-DIP 40-PDIP	0.6 in
Microchip Technology PIC16LF1519-I/MV	Internal	40-UFQFN Exposed Pad	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	3.6 V	1.8 V	28 KB	16 K	14	5 mm	40-UQFN	5 mm
Microchip Technology PIC16F1519-I/P	Internal		1 K	8 bit	FLASH	Through Hole	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	5.5 V	2.3 V	28 KB	16 K	14	15.24 mm	40-DIP 40-PDIP	0.6 in
Microchip Technology PIC16F1519T-I/PT	Internal	44-TQFP	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	5.5 V	2.3 V	28 KB	16 K	14	10 mm	44‑TQFP	10 mm
Microchip Technology PIC16LF1519-I/PT	Internal	44-TQFP	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	3.6 V	1.8 V	28 KB	16 K	14	10 mm	44‑TQFP	10 mm
Microchip Technology PIC16LF1519T-I/PT	Internal	44-TQFP	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	85 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	3.6 V	1.8 V	28 KB	16 K	14	10 mm	44‑TQFP	10 mm
Microchip Technology PIC16F1519-E/PT	Internal	44-TQFP	1 K	8 bit	FLASH	Surface Mount	8 Bit	Brown-out Detect POR PWM Reset WDT	125 °C	-40 °C	36	20 MHz	28 count	10 bit	I2C LINbus SPI UART USART	PIC	5.5 V	2.3 V	28 KB	16 K	14	10 mm	44‑TQFP	10 mm
