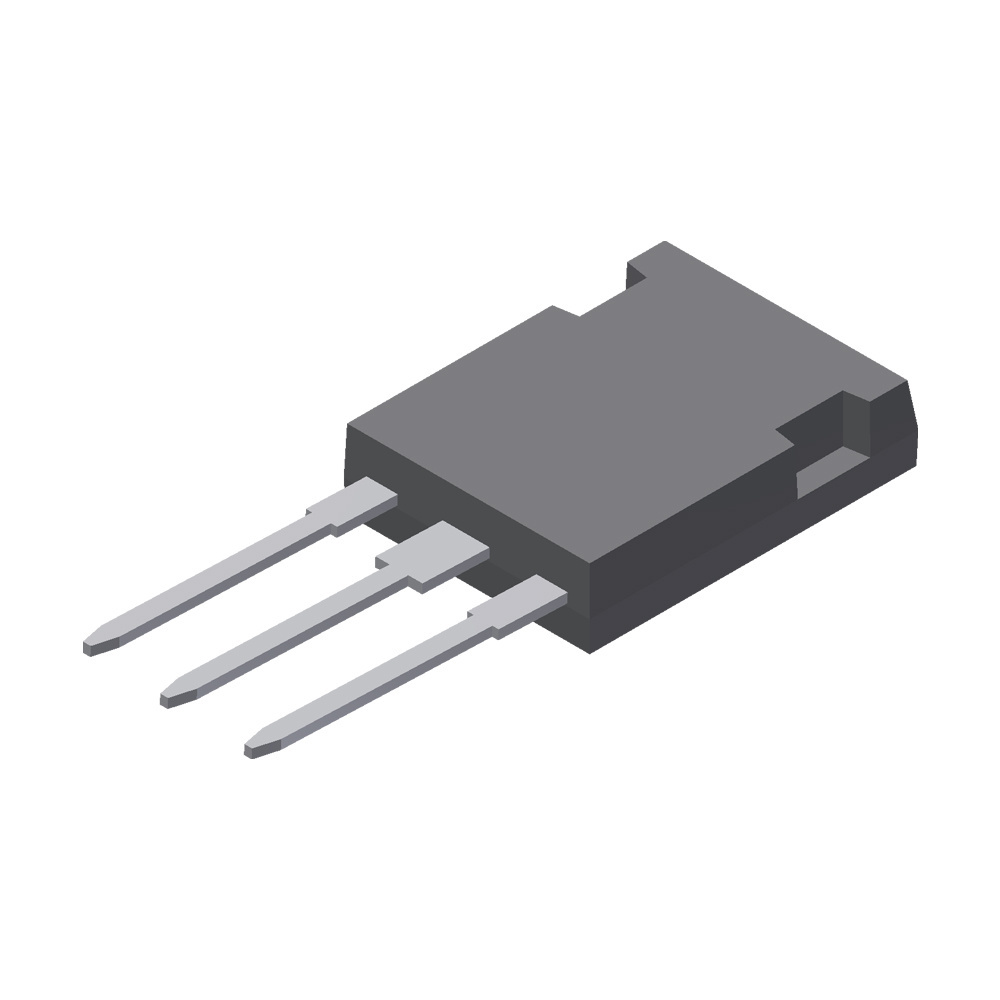

Power Diode Discretes-Rectifier TO-247AD
Description
AI
The discrete Standard Diode series comes with a broad variety of packages and breakdown voltages up to 1800V.
Beta
⌘K
Power Diode Discretes-Rectifier TO-247AD
Power Diode Discretes-Rectifier TO-247AD
| Part | Technology | Current - Average Rectified (Io) | Capacitance | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage | Mounting Type | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Package Name | Package / Case | Voltage - Forward (Vf) (Max) | Diode Pair Count | Diode Configuration | Current - Average Rectified (Io) (per Diode) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Standard | 45 A | 19 pF | 1600 V | 40 µA | Surface Mount | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 175 °C | -40 °C | TO-268AA (D3Pak-HV) | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | 1.26 V | |||
 LITTELFUSE | Standard | 1200 V | 20 µA | Through Hole | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 175 °C | -40 °C | TO-247AD | TO-247-3 | 1.28 V | 1 pair | Series Connection | 45 A | ||
LITTELFUSE | Standard | 1600 V | 20 µA | Through Hole | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 175 °C | -40 °C | TO-247AD | TO-247-3 | 1.28 V | 1 pair | Series Connection | 45 A | ||
 LITTELFUSE | Standard | 1600 V | 3 mA | Through Hole | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 175 °C | -40 °C | ISOPLUS247™ | TO-247-3 | 1.23 V | 1 pair | Series Connection | 43 A |
